1.Products Introduction of Steel frame factory prefabricated K homes temporary dormitory

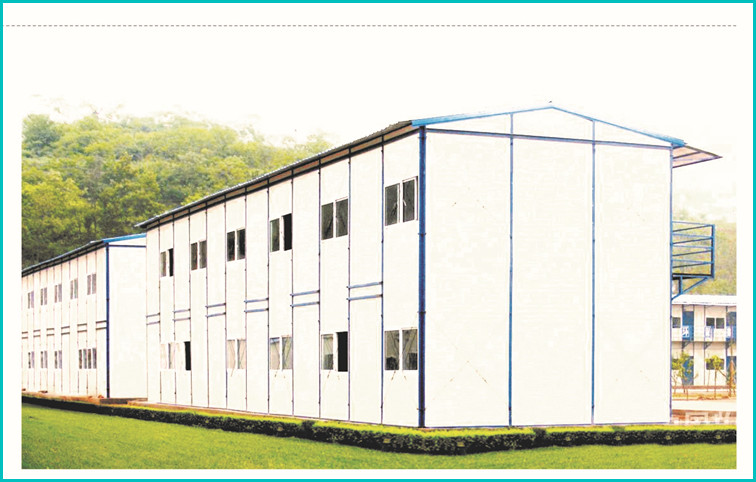

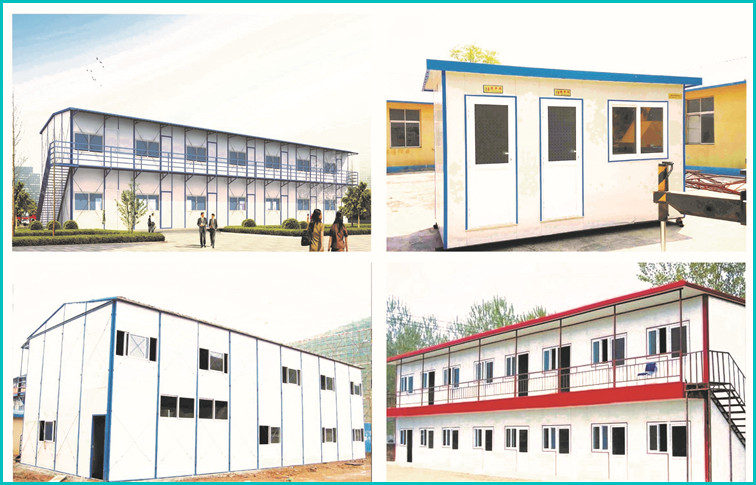

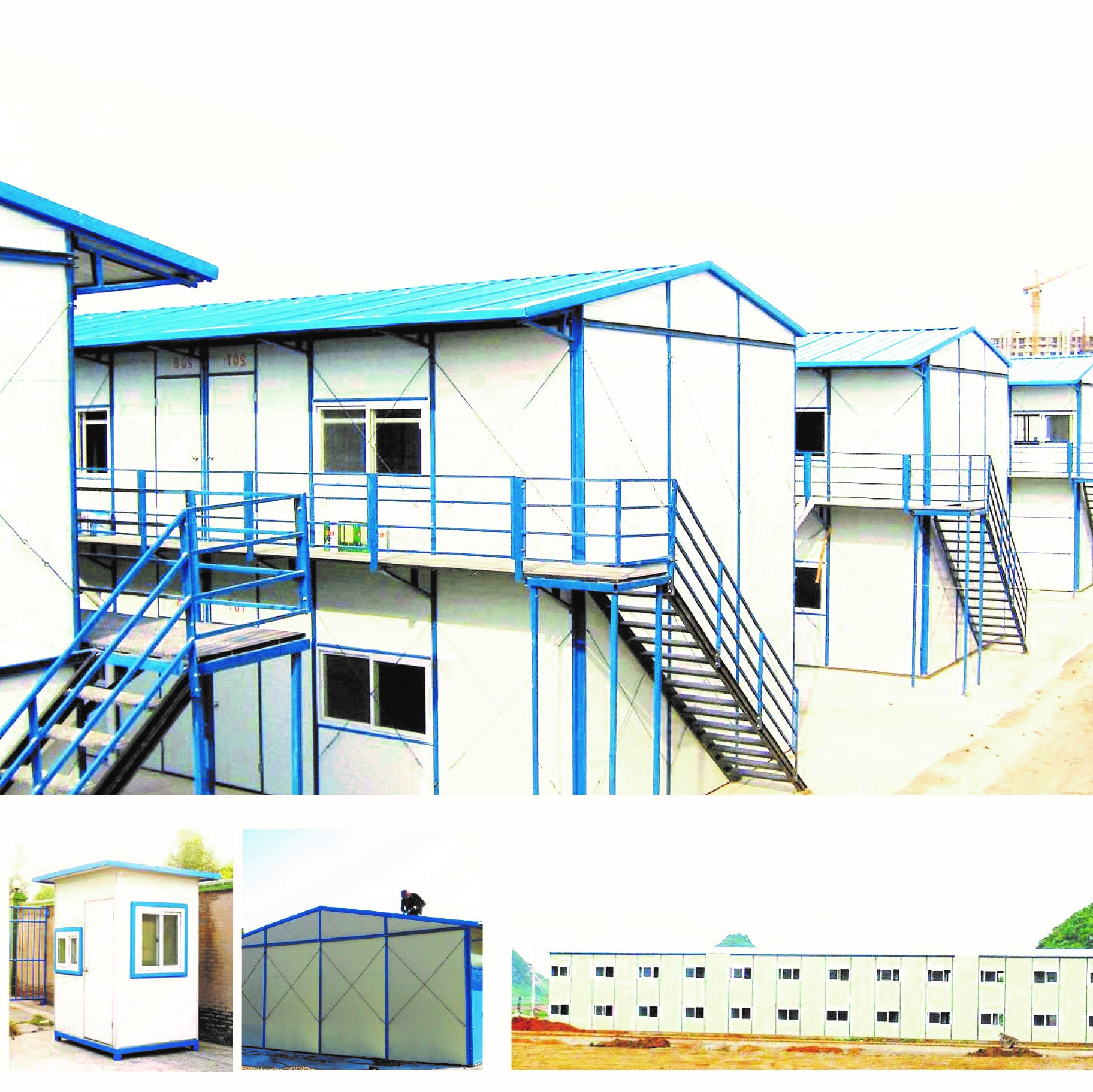

Steel frame factory prefabricated K homes temporary dormitory is widely used in Camp construction, infrastructure construction sites, barracks, mining areas, temporary activity areas, etc. It can be used as temporary shelter, accommodation, toilet, shower, etc. Welcome to order our prefabricated K homes standard components, if your project has special needs, we are also willing to tailor for you, our excellent design team will provide efficient solutions.
2.Products Parameter (Specification) of Steel frame factory prefabricated K homes temporary dormitory
| Prefabricated K-type Homes Materials (Double slopes) | |
| Part Name | Material Specifications |
| Column (double layer) | Sprayed baking double C80*1.5mm purlin |
| Column (single layer) | Sprayed baking double C80*1.5mm purlin |
| Ground beam | Galvanized C80*1.1mm purlin |
| Ring beam | Galvanized C80*1.1mm purlin |
| Floor beam(4K) | 400mm truss girder,galvanized C80*1.7&C50*1.1 purlin |
| Floor beam(3K) | 400mm truss girder,galvanized C80*1.5&C50*1.1 purlin |
| Roofing herringbone beam(4K) | Herringbone truss beam,galvanized C80*1.3&C50*1.1 purlin |
| Roofing herringbone beam(3K) | Herringbone truss beam,galvanized C80*1.1&C50*1.1 purlin |
| Horizontal support column | Galvanized C50*1.1mm purlin |
| Floor purlin | Galvanized C80*1.1mm purlin |
| Roof purlin | Galvanized C50*25*1.1mm purlin |
| Shelf bracket | Sprayed baking C80*1.7mm purlin |
| Stairs bracket | Sprayed baking C80*1.5mm purlin |

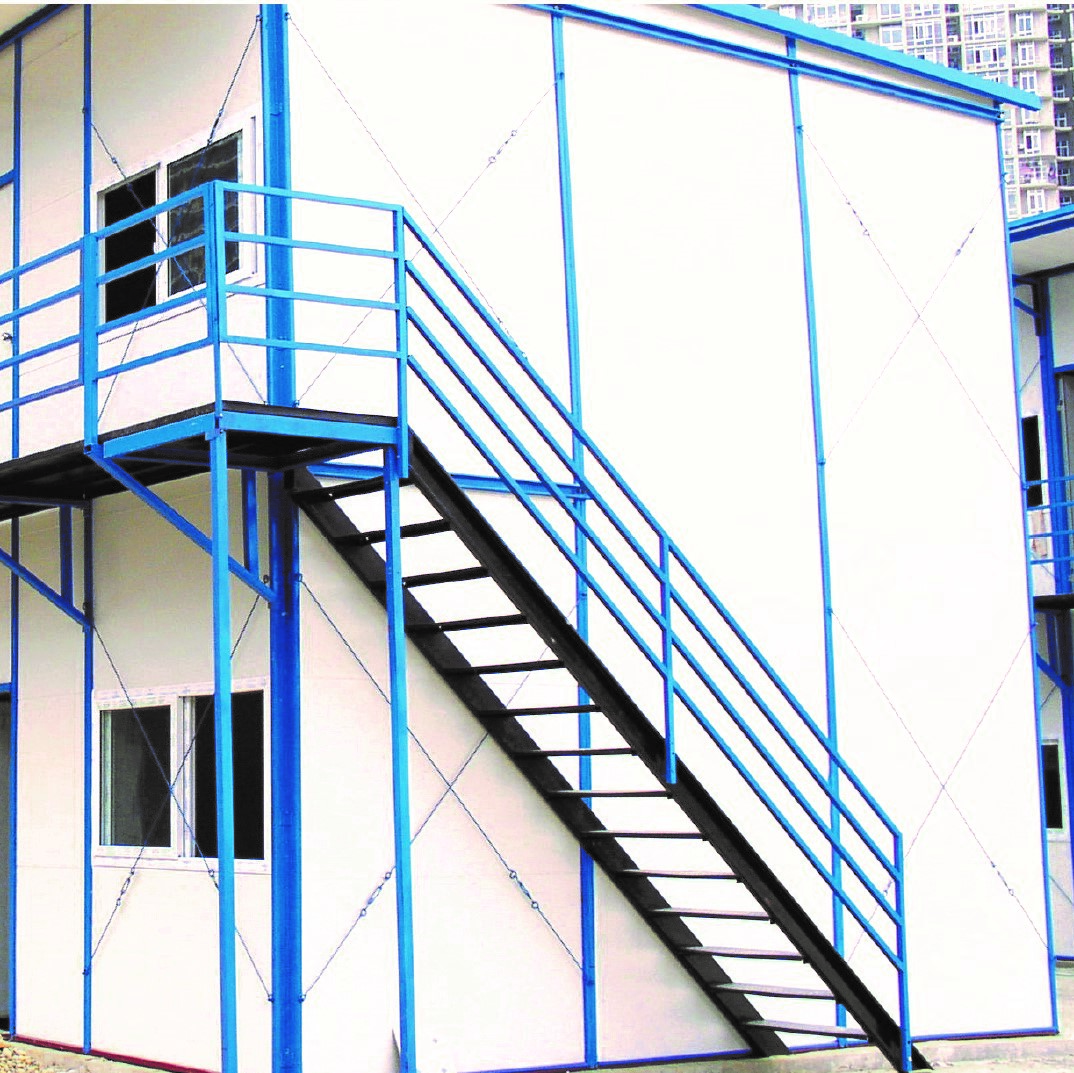

| Stair case | Integral spray color baking,C160*2.0 beam,2.3mm patterns plate*14pcs |
| Corridor plate | Paint spraying,patterns plate 2.3mm |
| Fence railing | Sprayed baking, □30*1.0 square steel tube,L40 angle steel |
| Handrail | Sprayed baking,□30*1.0 square steel tube,angle steel |
| Rain awning frame | Sprayed baking,□30*1.0 square steel tube |
| Wallboard | Glass wool sandwich board,double 0.17mm |
| Roofing tiles | Glass wool corrugated sandwich panel,Upper steel plate 0.236mm,Underside steel plate 0.17mm |
| Floorboard | Plywood 14mm |
| Window | Plastic steel sliding window |
| Door | Steel frame&Fireproof sandwich panel door |
| The specifications and thickness of the above materials can be changed according to your needs, please tell us your needs. | |
3.Product Feature And Application of Steel frame factory prefabricated K homes temporary dormitory
The advantages of prefabricated K homes temporary dormitory are wide application, anti-earthquake, anti-typhoon, economic and environmental protection, reduce construction waste, low cost, can be disassembled and reused, etc. Our prefabricated K homes require only a cement foundation, no cranes and other mechanical equipment to assist, simple installation tools can be quickly assembled on site.
Our steel frame factory prefabricated K homes temporary dormitory adopts hot-rolled galvanized steel after spraying and high-temperature baking can be used for a long time.Its stability and stress resistance ensure a service life of more than 20 years, Greatly saving the use cost.
4.Product Details of Steel frame factory prefabricated K homes temporary dormitory

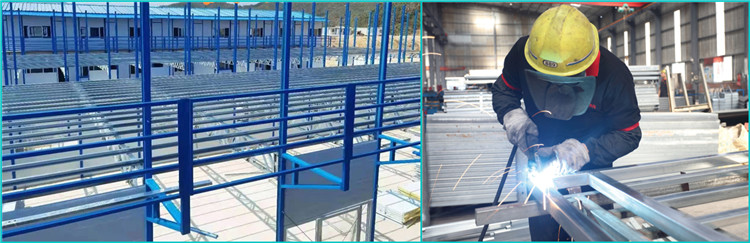

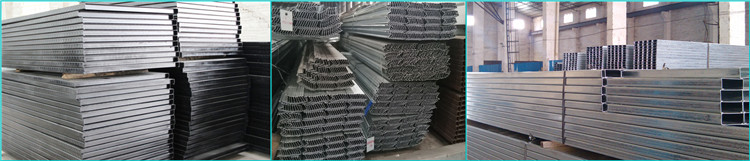

For the quality assurance of prefabricated K homes temporary dormitory,our team will plan and design your project requirements, make professional drawings, purchase high-quality raw materials, quality control person to check the production process layer upon layer, keep improving, only to present the best products to you.
5.Product Qualification of Steel frame factory prefabricated K homes temporary dormitory

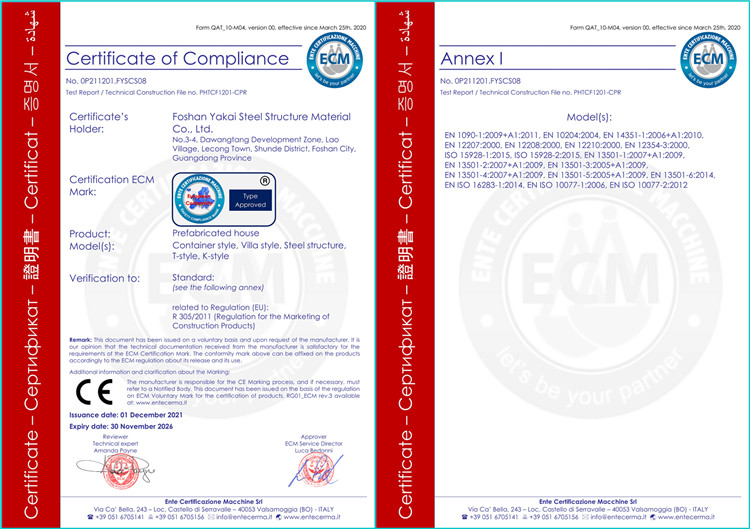

Because the prefabricated K homes temporary dormitory has many advantages.It has been best-selling for more than ten years, but it is still loved by many customers.Our all prefabricated steel structure materials meet CE safety certification standards and are managed and produced according to ISO system standards..
6. Deliver,Shipping And Serving of Steel frame factory prefabricated K homes temporary dormitory

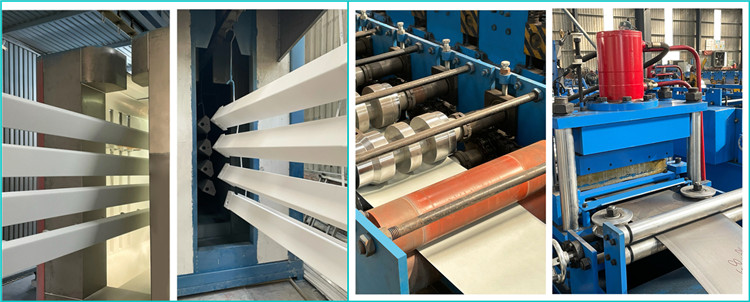

We have enough excellent equipment and teams to achieve large-scale production of steel frame factory prefabricated K homes temporary dormitory.Our delivery time is 5-20 days, the delivery time depends on your order quantity.

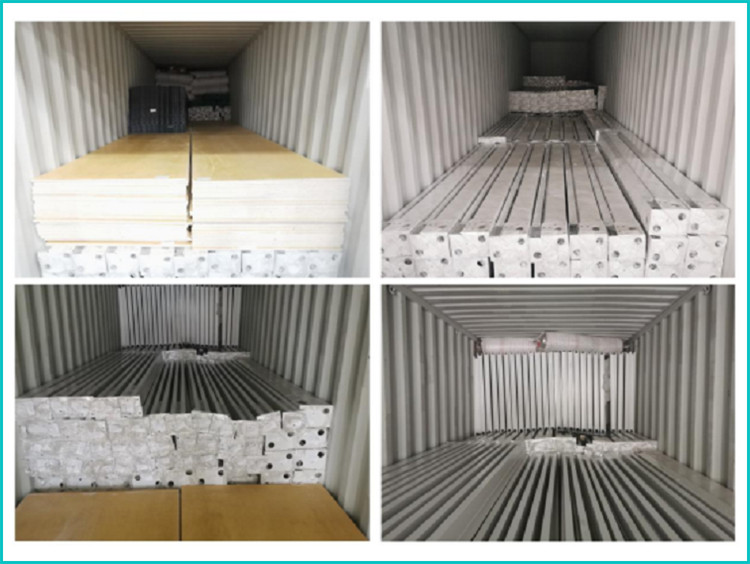

Type of shipping: container shipment or EX works
The size, thickness, color and accessories of the steel frame factory prefabricated K homes temporary dormitory can be produced according to your needs. We provide installation instructions. Please refer to RAL color card below for color.
7.FAQ
Q1:Why do you have to choose us?
A1: We are a steel frame factory,you can get a lower price of prefabricated K homes temporary dormitory directly trough us.
Q2:What is your payment terms?
A2:The payment is T/T, L/C,Western Union and so on.
Q3:Besides portable security house, what other types of prefab products do you offer?
A3:Fast and easy to install detachable container house,flat pack container house,prefabricated T homes,portable sandwich panel bathroom,portable toilet and portable security house and so on.
