1.Products Introduction of prefab villa prefabricated flat pack container house office

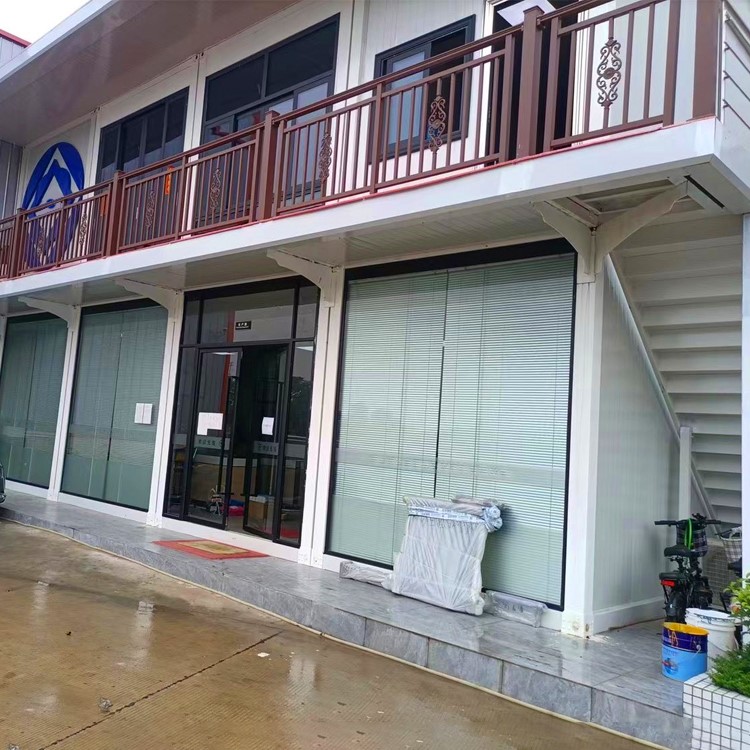

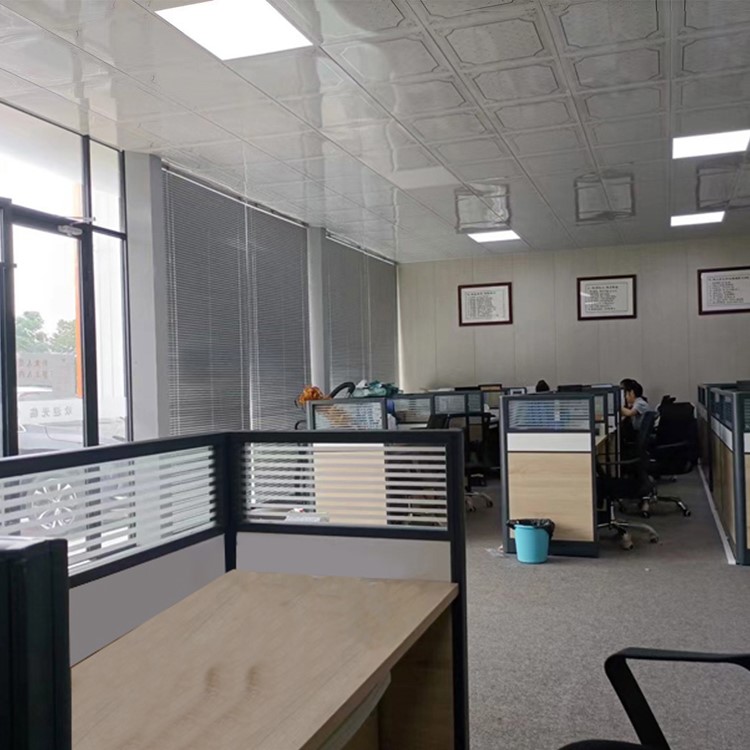

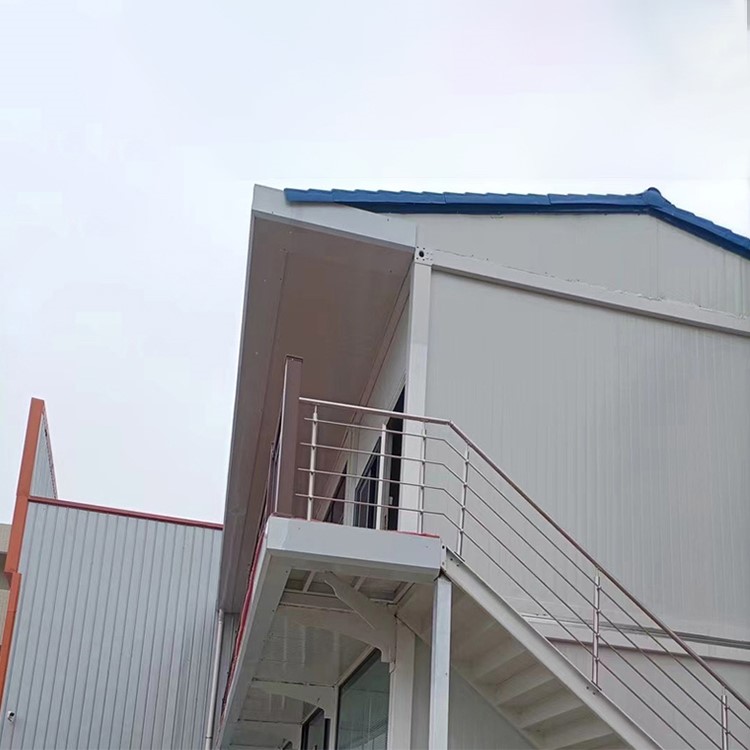

prefab villa prefabricated flat pack container house office is widely used in business office, high-grade residence and vacation area and so on. Its structure and size can be customized, prefabricated flat pack container office configuration materials and appearance decoration can choose simple or luxurious, please contact us to manufacture exclusive prefab villa for you.

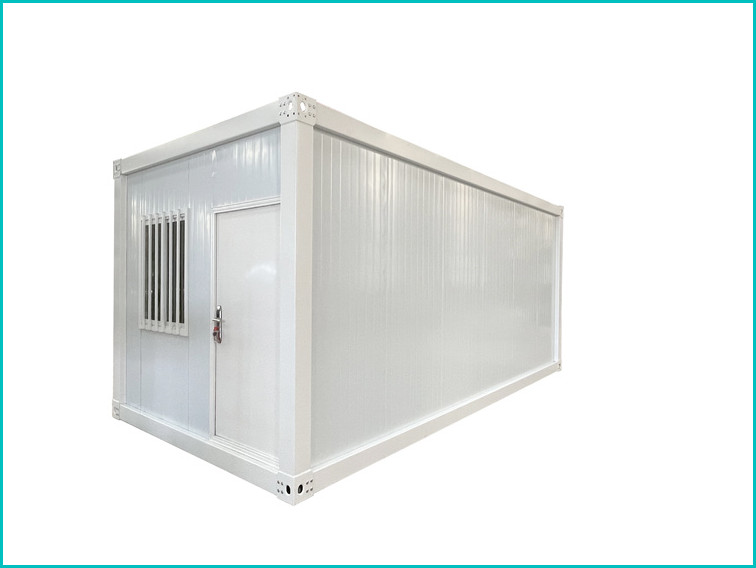

2.Products Parameter (Specification) of prefab villa prefabricated flat pack container house office
|
Name |
Prefabricated flat pack container house office |
|
Sizes |
Outside size：5960mm*3010mm*2810mm（customized） |
|
Inside size：5735mm*2800mm*2500mm |
|
|
Base |
Long beam：5760mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel |
|
Short beam：2810mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel |
|
|
Column：2470mm*(2.0-3.0mm)*4pcs, hot rolled galvanized steel. |
|
|
Corner Fitting：4.5-5.0mm*4pcs |
|
|
Square steel purlin：2880*80*80*(1.6-1.7mm)*4pcs，2880*80*40*(1.6-1.7mm)*5pcs |
|
|
Roof |
Long beam：5760mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel |
|
Short beam：2810mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel |
|
|
Corner Fitting：4.5-5.0mm*4pcs, hot rolled galvanized steel |
|
|
Pressure steel channel：5730*183*2pcs，2780*183*2pcs |
|
|
Angle steel：5730*30*30*2pcs |
|
|
T-shaped steel for roof：1883*78*(1.0-1.2mm)*6pcs |
|
|
C-style steel：1883*80*35**(1.0-1.2mm)*3pcs |
|
|
Square steel：5735*40*40*(1.0-1.2mm)*1pc，2785*80*40*(1.0-1.2mm)*2pcs |
|
|
Water tank：5840*280*2pcs |
|
|
Roof decoration |
Roofing Sheet：2900mm*980*7pcs，2770mm*831*7pcs |
|
Other material：glass wool |
|
|
Wall |
Size：50mm EPS sandwich panel/Rock wool sandwich panel |
|
Color：white or other optional colors |
|
|
Steel sheet：0.286/0.326/0.376/0.426/0.476mm |
|
|
Door |
2035mm*925mm Zinc iron alloy door with lock or optional door |
|
Window |
1100mm*950mm*2pcs Plastic-steel window or optional window |
|
Floor |
MGO floor or cement fiber floor |
|
Total weight |
About 1300kg |
|
Other material |
Hardware,Water pipe,Wrap angle,Decorative strips,silicon sealant etc. |

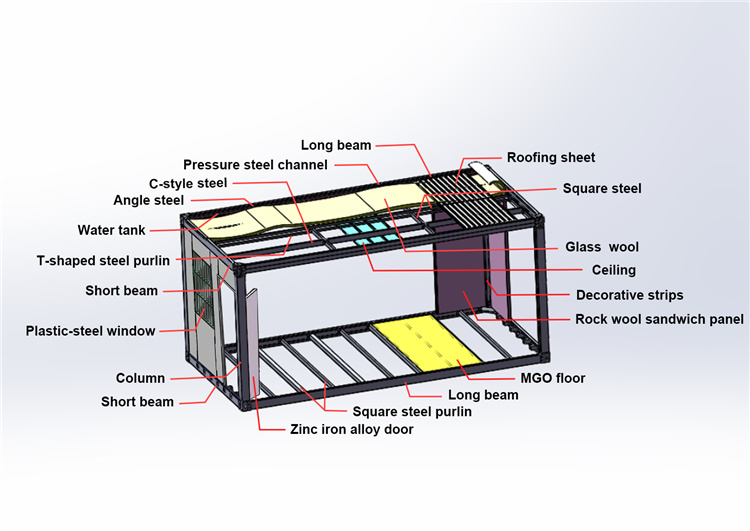

The above is the configuration list of a standard container house. We will install your requirements to develop the prefab villa container office plan and materials, please contact us now.
3.Product Feature And Application of prefab villa prefabricated flat pack container house office
The advantage of prefabricated flat pack container house office is Waterproof, fireproof, heat insulation, typhoon proof, easy to install, durable and so on.Our flat pack container house can be installed outdoors, indoors and building roof. It can be quickly assembled with simple installation tools without the assistance of cranes and other mechanical equipment.

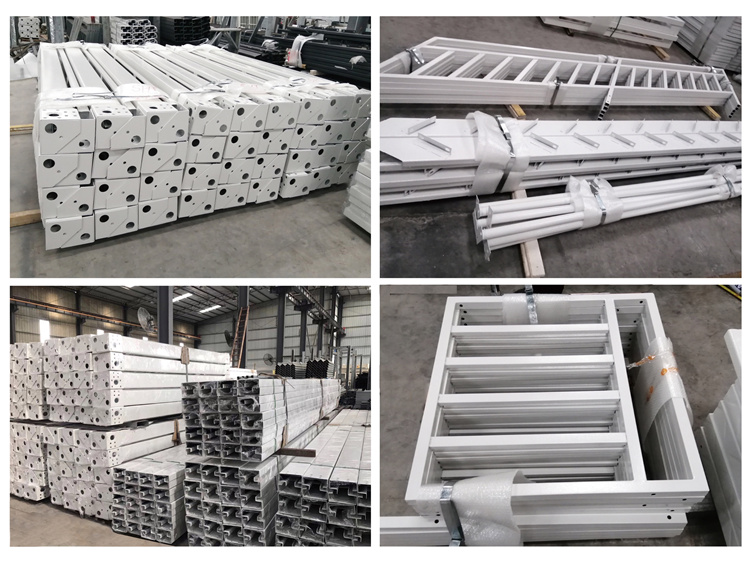

Our prefabricated flat pack container house office adopts hot-rolled galvanized steel after spraying and high-temperature baking can be used for a long time.Its stability and stress resistance ensure a service life of more than 20 years, choosing prefab villa can save housing costs and construction time.

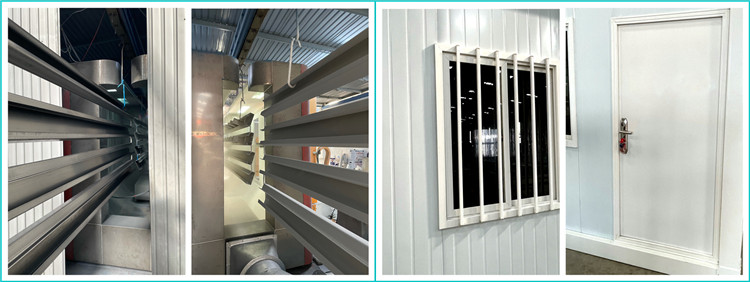

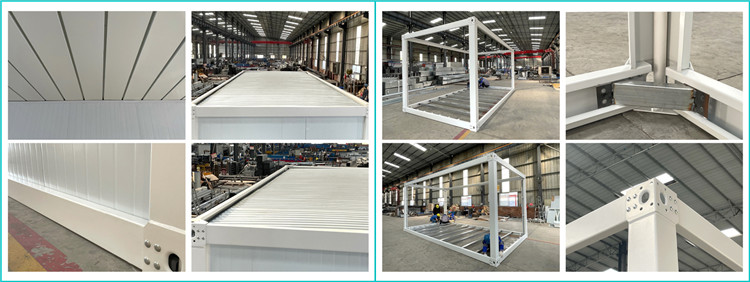

4.Product Details of prefab villa prefabricated flat pack container house office
For the quality assurance of prefabricated flat pack container house office, We control the whole process of production and pay attention to detail management.The production process is up to standard,adhere to ensure the quality of products by using high-quality materials.
5.Product Qualification of prefab villa prefabricated flat pack container house office

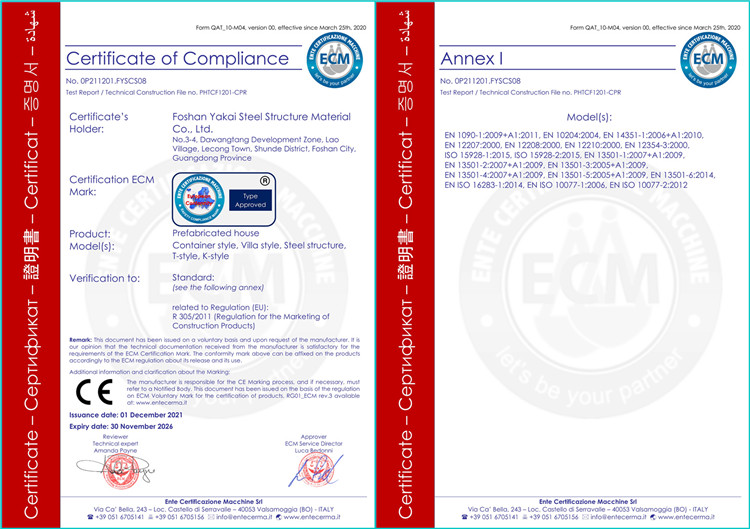

Because of the variability and wide application of prefab villa prefabricated flat pack container house office.Akay container houses have spread all over most cities in China, and are exported to Southeast Asia, America, Europe and other regions.Our full range of flat pack container house offices are in conformity with CE certification standards.Akay company in accordance with ISO system standards for management and production.
6. Deliver,Shipping And Serving of prefab villa prefabricated flat pack container house office

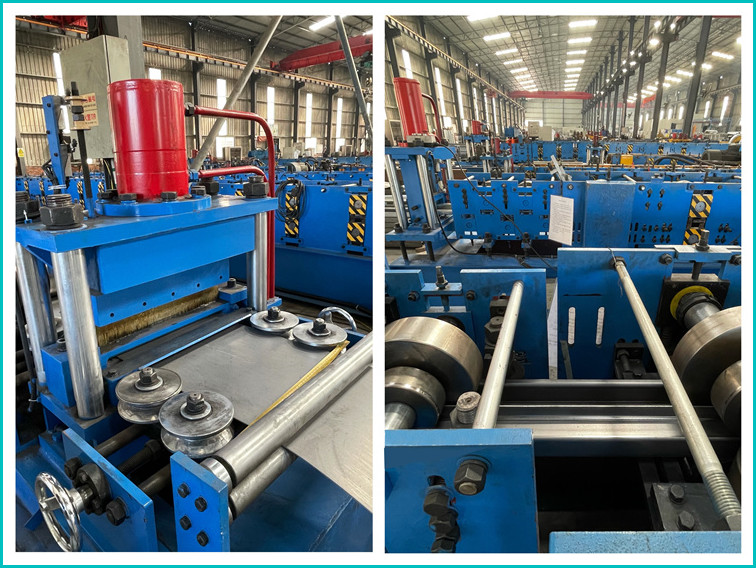

We have enough excellent equipment and teams to achieve large-scale production of prefab villa prefabricated flat pack container house office.Our production efficiency guarantee can be delivered within 5 days at the soonest, the delivery time depends on your order quantity.
Type of shipping: container shipment or EX works
Our service:the dimensions of prefab villa prefabricated flat pack container house office, the thickness of the steel structure and sandwich panel, and the color of the container house can all be customized according to your needs. We provide installation videos and instructions to facilitate on-site installation.Please refer to the following RAL color card.
7.FAQ
Q1:What is your payment terms?
A1:The payment is T/T, L/C or others.
Q2:What problems can we solve for you?
A2:In addition to the low price, our excellent R & D and design team can design matching prefab villa prefabricated flat pack container house office according to the project plan, and provide graphic design and 3D renderings.
Q3:Can we choose multiple types of materials for our products?
A3: The material thickness of steel structure frame of container frame outdoor corrugated plate detachable container house leisure huts can be 2.0-3.0mm, and the steel plate thickness of sandwich panel can be 0.286-0.376mm. If you have higher requirements on materials, please feel free to consult us.
