China high quality movable house modular prefabricated steel structure flat pack container house

Prefabricated steel structure flat pack container house is a patent product independently developed by Akay company. Its roof material is a combination of steel structure, ceiling and tiles, or can be added with a double slopes roof as shown in the picture, which can be customized according to actual needs. We are the source factory of R&D and production, we are the cooperative factory for many Chinese prefabricated steel structure flat pack container house exporters, you can get lower ex-factory price.

Send Inquiry

Appendix

Product Description



1.Products Introduction of Prefabricated steel structure flat pack container house

Prefabricated steel structure flat pack container house are particularly suitable for outdoor use and can be used as temporary or permanent accommodation. It is very versatile and can be designed to look anything you want. Because it does not have high requirements for the use of the site. We recommend you to choose prefabricated steel structure flat pack container house, please tell us your needs, our team will help you solve the project solution.

2.Products Parameter (Specification) of Prefabricated steel structure flat pack container house

Name

Flat pack container house with double slopes roof

Sizes

  Outside size:5960mm*3010mm*2810mm(customized)

Inside size:5735mm*2800mm*2500mm

Base

Long beam:5760mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel

Short beam:2810mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel

Column:2470mm*(2.0-3.0mm)*4pcs, hot rolled galvanized steel.

Corner Fitting:4.5-5.0mm*4pcs

Square steel purlin:2880*80*80*(1.6-1.7mm)*4pcs,2880*80*40*(1.6-1.7mm)*5pcs

Roof

Long beam:5760mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel

Short beam:2810mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel

Corner Fitting:4.5-5.0mm*4pcs, hot rolled galvanized steel

Pressure steel channel:5730*183*2pcs,2780*183*2pcs

Angle steel:5730*30*30*2pcs

T-shaped steel for roof:1883*78*(1.0-1.2mm)*6pcs

C-style steel:1883*80*35**(1.0-1.2mm)*3pcs

Square steel:5735*40*40*(1.0-1.2mm)*1pc,2785*80*40*(1.0-1.2mm)*2pcs

Water tank:5840*280*2pcs

Roof decoration

Roofing Sheet:2900mm*980*7pcs,2770mm*831*7pcs

Other material:glass wool

Wall

Size:50mm EPS sandwich panel/Rock wool sandwich panel

Color:white or other optional colors

Steel sheet:0.286/0.326/0.376/0.426/0.476mm

Door

2035mm*925mm Zinc iron alloy door with lock or optional door

Window

1100mm*950mm*2pcs Plastic-steel window or optional window

Floor

MGO floor or cement fiber floor

Total weight

About 1300kg

Other material

Hardware,Water pipe,Wrap angle,Decorative strips,silicon sealant etc.


The above is the configuration list of a standard container house. If you want to add double slope roof, please tell us. We will design and produce it as your requirements, please feel free to contact us and we will reply you within 12 hours.


3.Product Feature And Application of Prefabricated steel structure flat pack container house


The features of Prefabricated steel structure flat pack container house:

1. It can be anti-earthquake typhoon, waterproof and fire prevention.
2. It can heat insulation, durable, long service life.
3. It can be fast and easy to install, simple installation tools can be quickly assembled, no crane and other mechanical equipment.
4. The use of space is not restricted.


The application of Prefabricated steel structure flat pack container house:

1. Movable portable house or Movable portable office
2. Prefabricated villa or container classroom or modular container school
3. Camp dormitory or large warehouse
4. Temporary store
5. Modular container hotel or apartment, container form
6. Exhibition hall, exhibition room

4.Product Details of Prefabricated steel structure flat pack container house

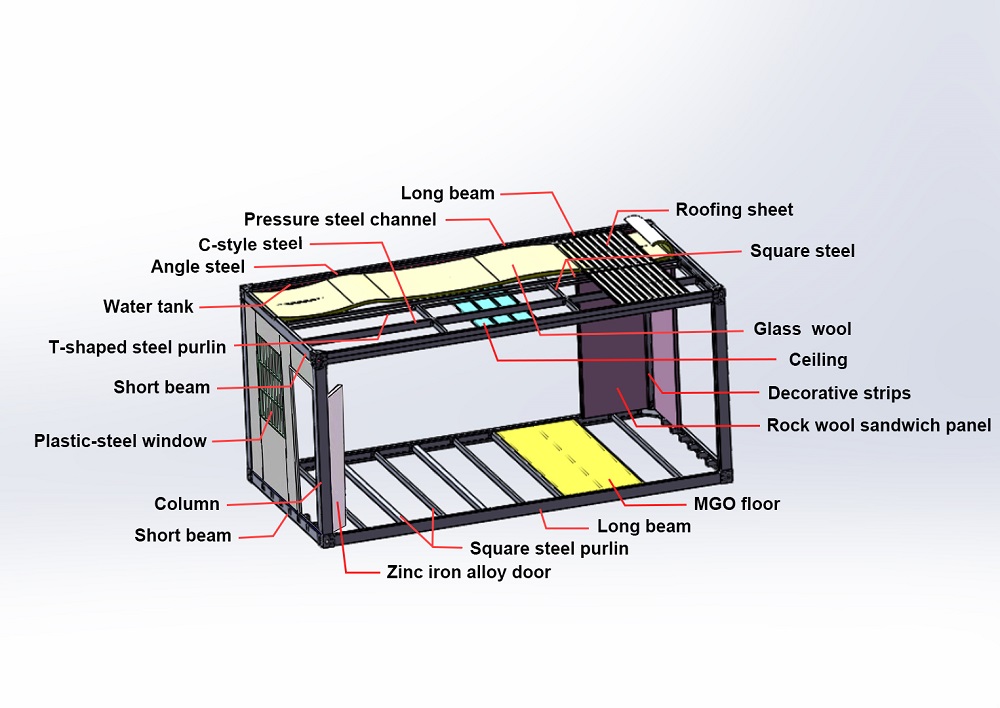

Below is the structure drawing of our standard container house, you can make some changes according to your needs, we will try our best to meet your design scheme.

China high quality movable house  modular prefabricated steel structure flat pack container house India

China high quality movable house  modular prefabricated steel structure flat pack container house The Philippines


China high quality movable house  modular prefabricated steel structure flat pack container house Thailand

China high quality movable house  modular prefabricated steel structure flat pack container house price list

China high quality movable house  modular prefabricated steel structure flat pack container house for sale


5.Product Qualification of Prefabricated steel structure flat pack container house

Because the frame material of prefabricated steel structure flat pack container house uses hot-rolled galvanized steel with a thickness of more than 2.3 mm. After spraying and high-temperature baking, the frame has outstanding firmness, corrosion resistance and rust resistance. Some factories have used hot rolled steel, which is easy to stabilize and widely used in a short time. Akay container houses have been all over most cities in China and many overseas countries. Our full range of flat pack container house are CE certified, managed and manufactured according to ISO system standards.

6. Deliver,Shipping And Serving of Prefabricated steel structure flat pack container house


Deliver Time:
 3-15 days.

Shipping Type: Sea container transport or other options.

Custom Service:

1. Customize container size.

2. Customize different specifications of materials.

3. Custom container frame color for white,blue,black or other option.

4. Custom wallboard color.

5. Custom steel frame construction.

7.FAQ
Q1:How long have you been producing eco modular detachable container house?

A1:We have been developing and designing container houses for more than 10 years, with dozens of patented technologies and rich production experience



Q2:Why choose us?

A2:Source manufacturers, factory wholesale prices, we can help you customize, more flexible, more efficient, and factory docking is the best procurement channel.



Q3:What is your payment terms?

A3. The payment is T/T, L/C or other options.

Q4: What other types of prefabricated products do you have?

A4:.Detachable container house,prefabricated T homes and prefabricated K homes,portable sandwich panel bathroom and portable security house and more.
