1.Products Introduction of China Prefabricated House Materials Detachable Container House
China prefabricated house materials detachable container house is an assembly design, which is convenient for installation and recycling. It can improve construction efficiency and save time and labor costs. It can be used as temporary housing or long-term residential housing. China prefabricated house materials detachable container house can be custom-sized.They can also be combined into large space houses.
2.Products Parameter (Specification) of China Prefabricated House Materials Detachable Container House
|
Name |
Detachable container office with stairs and veranda awnings |
|
Sizes |
Outside size:5960mm*3010mm*2810mm（customized） |
|
Inside size:5735mm*2800mm*2500mm |
|
|
Base |
Long beam:5760mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel |
|
Short beam:2810mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel |
|
|
Column:2470mm*(2.0-3.0mm)*4pcs, hot rolled galvanized steel. |
|
|
Corner Fitting:4.5-5.0mm*4pcs |
|
|
Square steel purlin:2880*80*80*(1.6-1.7mm)*4pcs，2880*80*40*(1.6-1.7mm)*5pcs |
|
|
Roof |
Long beam:5760mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel |
|
Short beam:2810mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel |
|
|
Corner Fitting:4.5-5.0mm*4pcs, hot rolled galvanized steel |
|
|
Pressure steel channel:5730*183*2pcs，2780*183*2pcs |
|
|
Angle steel:5730*30*30*2pcs |
|
|
T-shaped steel for roof:1883*78*(1.0-1.2mm)*6pcs |
|
|
C-style steel:1883*80*35**(1.0-1.2mm)*3pcs |
|
|
Square steel:5735*40*40*(1.0-1.2mm)*1pc，2785*80*40*(1.0-1.2mm)*2pcs |
|
|
Water tank:5840*280*2pcs |
|
|
Roof decoration |
Roofing Sheet:2900mm*980*7pcs，2770mm*831*7pcs |
|
Other material:glass wool |
|
|
Wall |
Size:50mm EPS sandwich panel/Rock wool sandwich panel |
|
Color:white or other optional colors |
|
|
Steel sheet:0.286/0.326/0.376/0.426/0.476mm |
|
|
Door |
2035mm*925mm Zinc iron alloy door with lock or optional door |
|
Window |
1100mm*950mm*2pcs Plastic-steel window or optional window |
|
Floor |
MGO floor or cement fiber floor |
|
Total weight |
About 1300kg |
|
Other material |
Hardware,Water pipe,Wrap angle,Decorative strips,silicon sealant etc. |
Above is the configuration list of a standard container house,it can be customized according to your needs.
3.Product Feature And Application of China Prefabricated House Materials Detachable Container House
The features of China prefabricated house materials detachable container house:
1. More than 80% prefabrication process, efficient construction.
2. Save labor cost, save construction cost and shorten construction period.
3. Container houses can be transported by crane or forklift for easy reuse.
4. Fire prevention, waterproof, corrosion resistance, sound insulation, heat preservation, durable, environmental protection.
5. Strong flexibility and wide application range.
The application of china prefabricated house materials detachable container house:
1. Department of Infrastructure Projects.
2. Temporary office building for engineering.
3. Construction site dormitory.
4. Mining area temporary housing.
5. Government project construction engineering office, etc.
6. Container house camp.
7. Container showroom.
8. Container labor camps, shelters.
4.Product Details of China Prefabricated House Materials Detachable Container House

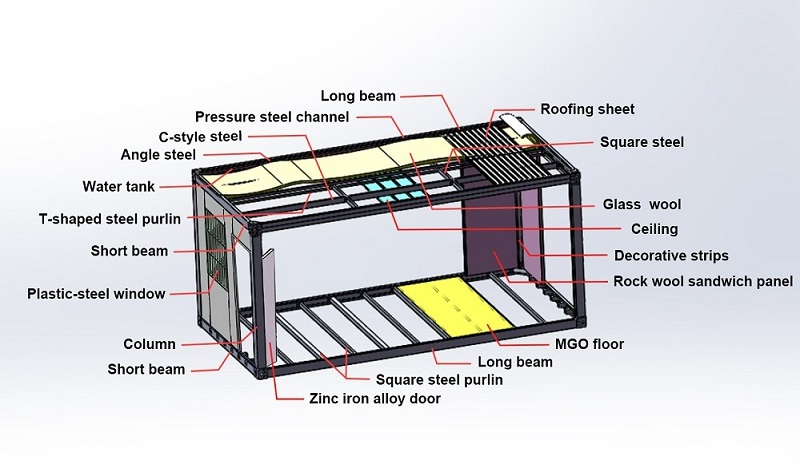

Below is the structure diagram of our standard container room. If your project has different requirements, we will also provide different schemes.
5.Product Qualification of China Prefabricated House Materials Detachable Container House
The high quality of the product comes from:
1. Made of high quality galvanized steel with high strength.
2. The main frame is made of high quality coating material, which is corrosion-resistant, not easy to rust and more beautiful after high temperature baking.
3. The thickness of the main frame material can be adjusted according to the actual need, the thickness of the beam and column can be 2.0-2.5 mm, the bottom square steel can be 1.5-1.7 mm, good firmness, safe and reliable.
4. Container houses have passed CE certification, Akay company in accordance with ISO system standards management and manufacturing.
6. Deliver,Shipping And Serving of China Prefabricated House Materials Detachable Container House
Deliver Time: 3-15 days.
Shipping Type: LCL, 40HQ or 20GP Container transport.
Custom Service:
1. The size and material specifications of container house can be customized.
2. Spray color is optional.
3. The color and color steel thickness of wallboard are optional.
7.FAQ
Q1:Are you a factory or trade company?
A1:We are specialized in manufacturing China prefabricated house materials detachable container house.Our factory is located in Foshan city,Guangdong Province,China.
Q2:What is your payment terms?
A2:The payment is T/T, L/C or other options.
Q3:What's your earliest delivery time?
A3: Delivery time for the china prefabricated house materials detachable container house depends on your order volume, about 5-15 days, small orders can be delivered within 5 days.
