1.Products Introduction of China Construction Site Office Flat Pack Container House
China construction site office flat pack container house is a kind of detachable design, easy to assemble and fast, can be moved as a whole, and can be recycled. It can help improve construction efficiency, save time and labor costs, and lower construction costs. China construction site office flat pack container house can be customized size. It can be combined into different shapes and can change the size of the space.
2.Products Parameter (Specification) of China Construction Site Office Flat Pack Container House
|
Name |
Flat pack container homes with steel structure roof |
|
Sizes |
Outside size:5960mm*3010mm*2810mm（customized） |
|
Inside size:5735mm*2800mm*2500mm |
|
|
Base |
Long beam:5760mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel |
|
Short beam:2810mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel |
|
|
Column:2470mm*(2.0-3.0mm)*4pcs, hot rolled galvanized steel. |
|
|
Corner Fitting:4.5-5.0mm*4pcs |
|
|
Square steel purlin:2880*80*80*(1.6-1.7mm)*4pcs，2880*80*40*(1.6-1.7mm)*5pcs |
|
|
Roof |
Long beam:5760mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel |
|
Short beam:2810mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel |
|
|
Corner Fitting:4.5-5.0mm*4pcs, hot rolled galvanized steel |
|
|
Pressure steel channel:5730*183*2pcs，2780*183*2pcs |
|
|
Angle steel:5730*30*30*2pcs |
|
|
T-shaped steel for roof:1883*78*(1.0-1.2mm)*6pcs |
|
|
C-style steel:1883*80*35**(1.0-1.2mm)*3pcs |
|
|
Square steel:5735*40*40*(1.0-1.2mm)*1pc，2785*80*40*(1.0-1.2mm)*2pcs |
|
|
Water tank:5840*280*2pcs |
|
|
Roof decoration |
Roofing Sheet:2900mm*980*7pcs，2770mm*831*7pcs |
|
Other material:glass wool |
|
|
Wall |
Size:50mm EPS sandwich panel/Rock wool sandwich panel |
|
Color:white or other optional colors |
|
|
Steel sheet:0.286/0.326/0.376/0.426/0.476mm |
|
|
Door |
2035mm*925mm Zinc iron alloy door with lock or optional door |
|
Window |
1100mm*950mm*2pcs Plastic-steel window or optional window |
|
Floor |
MGO floor or cement fiber floor |
|
Total weight |
About 1300kg |
|
Other material |
Hardware,Water pipe,Wrap angle,Decorative strips,silicon sealant etc. |
This is the standard configuration material for container houses, we can customize according to your specific needs.
3.Product Feature And Application of China Construction Site Office Flat Pack Container House
The features of China construction site office flat pack container house:
1. More than 80% prefabrication process, efficient construction.
2. Saving labor cost, saving construction cost, shorten the construction time.
3. Container house can be lifted and transported by crane or forklift, which is convenient for repeated use.
4. Fireproof and waterproof, corrosion resistance, sound insulation, heat preservation, durable, energy saving and environmental protection.
The application of China construction site office flat pack container house:
1. Construction site project office.
2. Labor temporary dormitory.
3. Mining area dormitory.
4. Prefab container school and classroom.
5. Prefabricated container office camp.
6. Customized shipping container stores.
7. Container home shelter.
8. Outdoor office cabin.
9. Modular accommodation units and more.

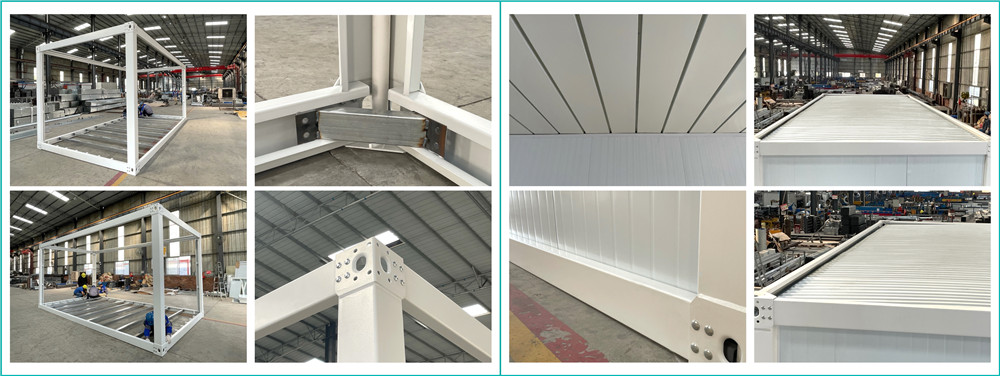

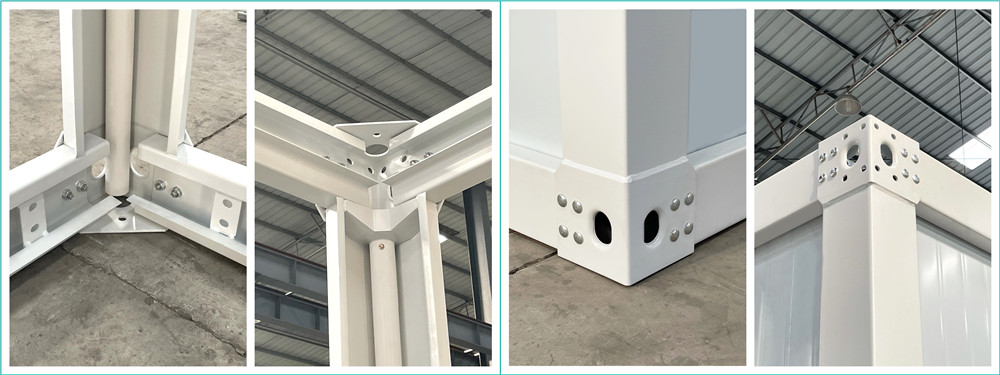

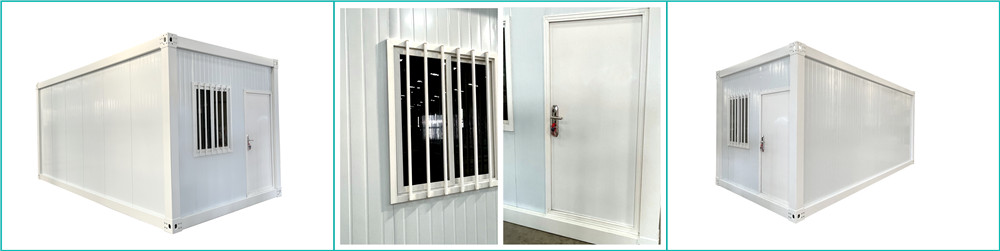

4.Product Details of China Construction Site Office Flat Pack Container House

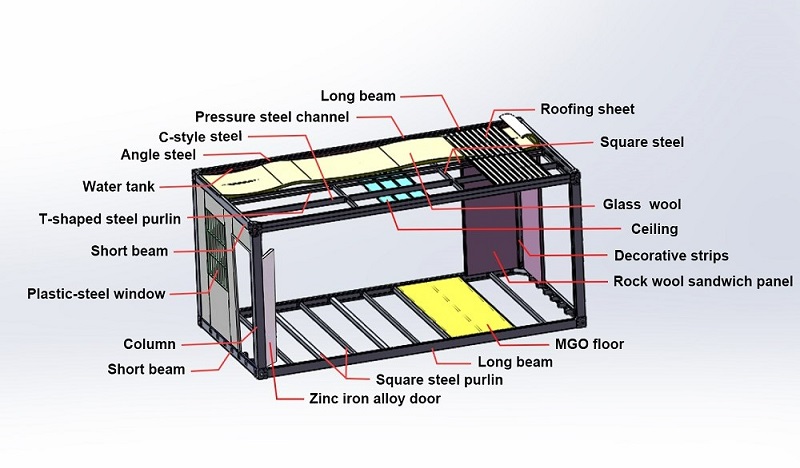

Below is the structure diagram of our standard container houses. If your project has different needs, please let us know and we can help you achieve personalized project solutions.

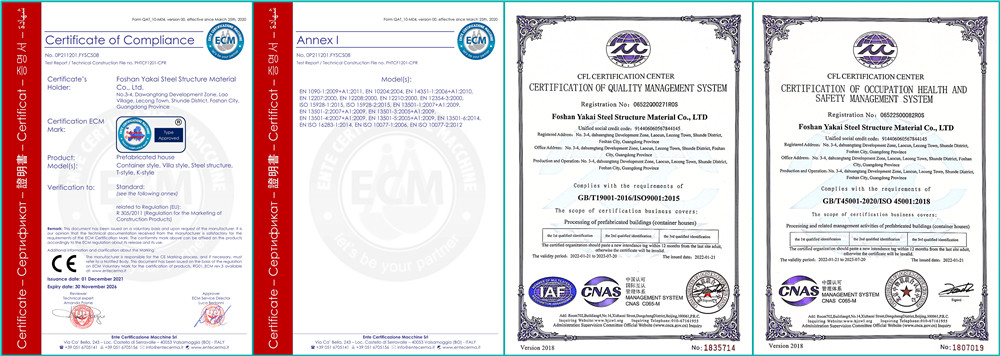

5.Product Qualification of China Construction Site Office Flat Pack Container House
High quality products come from:
1. The steel structure is made of high quality galvanized steel, with high quality coating and high temperature baking, the structure is firm, durable, not easy to rust, safe and reliable.
2. The thickness of beam and column material can be selected between 2.0-2.5 mm, and higher demand can also be proposed.
3. All prefabricated housing products have passed CE certification, and the company's production and management are strictly in accordance with ISO system standards.
6. Deliver,Shipping And Serving of China Construction Site Office Flat Pack Container House
Deliver Time: 3-15 days.
Shipping Type: LCL, 40HQ or 20GP Container transport.
Custom Service:
1. The size and material specifications of container houses.
2. Local structure design.
3. Spraying color,such as: white,blue,green,black and so on.
4. The color and color steel thickness of wallboard are optional.
7.FAQ
Q1:Are you a factory or trade company?
A1:We are specialized in manufacturing China custom container home flat pack container house.Our factory is located in Foshan,Guangdong,China.
Q2:What is your payment terms?
A2:The payment is T/T, L/C or other options.
Q3:Compared to other factories，what advantage do you have?
A3:Our advantages: more than 10 years of experience in developing, manufacturing and selling detachable container houses, flat pack container houses, more than 40 patented technologies, innovative technology and large-scale production to obtain extremely low prices. Fast response R&D team, a large number of professional intelligent production equipment to achieve fast delivery, stock is sufficient.
Q4:What's your time of delivery?
A4: Delivery time for China construction site office flat pack container house depends on your order volume, about 5-15 days, small orders can be delivered within 5 days.
