1.Products Introduction of container home insulation prefab detachable container house villa
Container home insulation villa is the latest detachable container house developed by Akay Company. It is made for high strength steel structure materials. Container materials can be configured according to your needs.
If you need to customize different specifications and sizes, our design team can solve for you, any requirements welcome to contact us.

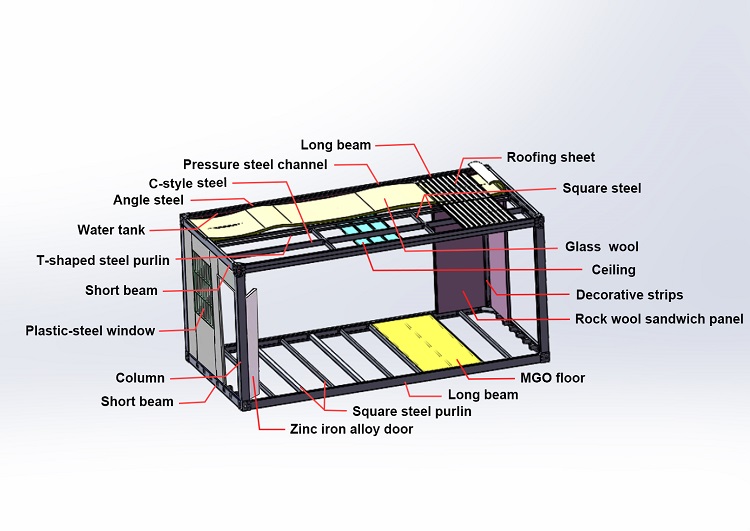

2.Products Parameter (Specification) of container home insulation prefab detachable container house villa
|
Name |
Prefab detachable container villa |
|
Sizes |
Outside size：5960mm*3010mm*2810mm（customized） |
|
|
Inside size：5735mm*2800mm*2500mm |
|
Base |
Long beam：5760mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel |
|
|
Short beam：2810mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel |
|
|
Column：2470mm*(2.0-3.0mm)*4pcs, hot rolled galvanized steel. |
|
|
Corner Fitting：4.5-5.0mm*4pcs |
|
|
Square steel purlin：2880*80*80*(1.6-1.7mm)*4pcs，2880*80*40*(1.6-1.7mm)*5pcs |
|
Roof |
Long beam：5760mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel |
|
|
Short beam：2810mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel |
|
|
Corner Fitting：4.5-5.0mm*4pcs, hot rolled galvanized steel |
|
|
Pressure steel channel：5730*183*2pcs，2780*183*2pcs |
|
|
Angle steel：5730*30*30*2pcs |
|
|
T-shaped steel for roof：1883*78*(1.0-1.2mm)*6pcs |
|
|
C-style steel：1883*80*35**(1.0-1.2mm)*3pcs |
|
|
Square steel：5735*40*40*(1.0-1.2mm)*1pc，2785*80*40*(1.0-1.2mm)*2pcs |
|
|
Water tank：5840*280*2pcs |
|
Roof decoration |
Roofing Sheet：2900mm*980*7pcs，2770mm*831*7pcs |
|
|
Other material：glass wool |
|
Wall |
Size：50mm EPS sandwich panel/Rock wool sandwich panel |
|
|
Color：white or other optional colors |
|
|
Steel sheet：0.286/0.326/0.376/0.426/0.476mm |
|
Door |
2035mm*925mm Zinc iron alloy door with lock or optional door |
|
Window |
1100mm*950mm*2pcs Plastic-steel window or optional window |
|
Floor |
MGO floor or cement fiber floor |
|
Total weight |
About 1300kg |
|
Other material |
Hardware,Water pipe,Wrap angle,Decorative strips,silicon sealant etc. |
You can change the materials and specifications of the container house if you have different requirements,welcome to contact us.
3.Product Feature And Application of container home insulation prefab detachable container house villa
The advantage of container home insulation prefab detachable container house villa is waterproof,durable,Isolation heat preservation, sound insulation，long service life,anti-typhoon,quick and easy to install etc..It is widely used in on site office temporary housing, resort hotel,luxury project department, temporary store, medical building housing, mining construction dormitory and so on.
Don't need cement foundation, using tools can achieve manual installation. It be used in inconvenient transportation or rural mountainous areas, on-site installation, easy to transport, cost saving and housing construction time, high strength steel structure material, to achieved long-term residence, can be pieced together to assemble a large area of housing, spacious and comfortable housing can be realized at any time.

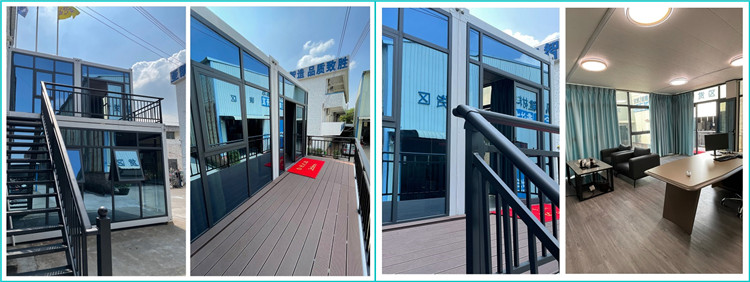

4.Product Details of container home insulation prefab detachable container house villa
We pay more attention to the details of container home insulation prefab detachable container house villa.

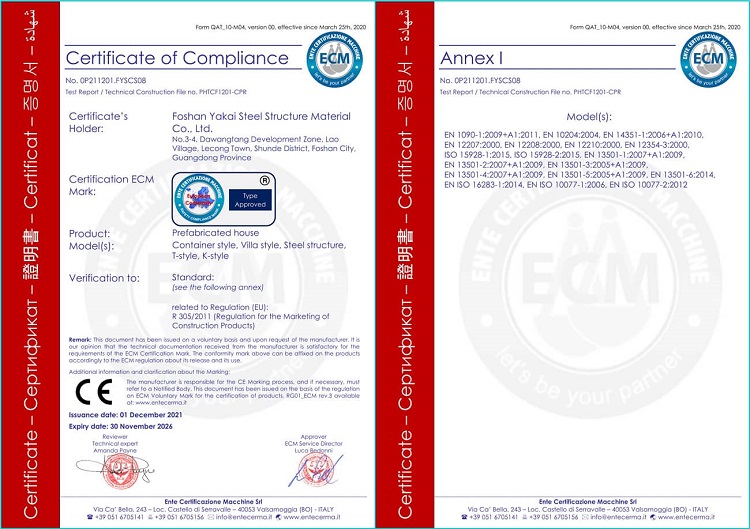

5.Product Qualification of container home insulation prefab detachable container house villa
Our container home insulation prefab detachable container house villa have obtained CE certification and meet relevant safety standards.

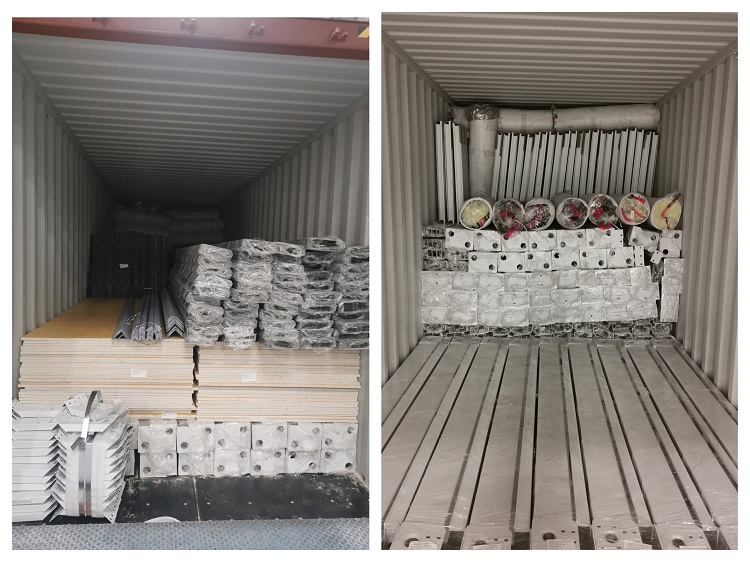

6. Deliver,Shipping And Serving of container home insulation prefab detachable container house villa
Our container home insulation prefab detachable container house villa can be scale production, so the delivery time can be determined according to the order volume, about 10-20 days.
Type of shipping: container or EX works
Our service: DIY design and can change the size according to your needs. Our team conducts remote installation guidance. Our automatic spraying and baking production line can meet your various needs for color, please refer to the following RAL color card.
7. FAQ
Q1:What's your minimum order quantity?
A1: 1* 40HQ can be loaded 15sets for prefab detachable container house or small orders.
Q2:What is your payment terms?
A2:The payment is T/T and L/C.
Q3:Are you the factory or the trade company?
A3:We are the factory of professional container home insulation prefab detachable container house villa which located in Foshan city,China.
