1.Products Introduction of Shipping container frame detachable container house
Shipping container frame detachable container house is detachable design, flexible disassembly and fixation. It can be installed manually without lifting machinery, saving you construction costs and moving easily. The overall structure of the house is simple, easy and can achieve quick installation. The house frame is made of galvanized steel, sprayed and baked at high temperatures, with a service life of more than 20 years. Shipping container frame detachable container house is a prefabricated modular mobile homes that can be customized in size or combined into larger spaces.
2.Products Parameter (Specification) of Shipping container frame detachable container house
|
Name |
Shipping container frame detachable container house |
|
Sizes |
Outside size:6000mm*3000mm*2820mm（customized) |
|
Inside size：5795mm*2795mm*2515mm |
|
|
Base |
Long beam：5800mm*2.0mm)*2pcs, galvanized steel |
|
Short beam：2800mm*2.0mm)*2pcs, galvanized steel |
|
|
Column：2490mm*2.0mm*4pcs, galvanized steel. |
|
|
Corner Fitting:4.5-5.0mm*4pcs，Diagonal brace:300*80*35*4pcs |
|
| Square steel purlin：2890*80*80*1.7mm*4pcs，2890*80*40*1.7mm*5pcs | |
|
Roof |
Long beam:5800mm*2.0mm)*2pcs, galvanized steel |
|
Short beam:2800mm*2.0mm)*2pcs, galvanized steel |
|
|
Corner Fitting:4.5-5.0mm*4pcs, |
|
|
C-style steel:1935*80*35**1.2mm*12pcs |
|
|
Square steel:2890*80*40*1.4mm*2pcs |
|
|
Roof decoration |
Roofing Sheet:2935mm*980*7pcs，2825mm*831*7pcs |
|
Other material:glass wool |
|
|
Wall |
Size:50mm EPS sandwich panel/Rock wool sandwich panel |
|
Color:white or other optional colors |
|
|
Steel sheet:0.286/0.326/0.376/0.426/0.476mm |
|
|
Door |
2035mm*925mm Zinc iron alloy door with lock or optional door |
|
Window |
1100mm*950mm*2pcs Plastic-steel window or optional window |
|
Floor |
MGO floor or cement fiber floor |
|
Total weight |
About 1100kg |
|
Other material |
Hardware,Water pipe,Wrap angle,Decorative strips,silicon sealant etc. |
The above is the configuration list of a standard container house. If you want to change some materials, please tell us. We will design and produce it as your needs.
3.Product Feature And Application of Shipping container frame detachable container house
The features of shipping container frame detachable container house:
1. Natural drainage, no internal drainage facilities.
2.Anti-earthquake typhoon, waterproof and fire prevention.
3.Heat insulation, long service life.
4.Fast and easy to install.
5.Using flexible.
6.Sizes and colors can be customized
The application of shipping container frame detachable container house:
1.Especially suitable for mountainous areas where traffic is not convenient.
2.Container Construction camp.
3.Container dormitory.
4.Container office building.
5.Container warehouse.
6.Customize personalized temporary store.
7.Modular container hotel or apartment.
4.Product Details of shipping container frame detachable container house

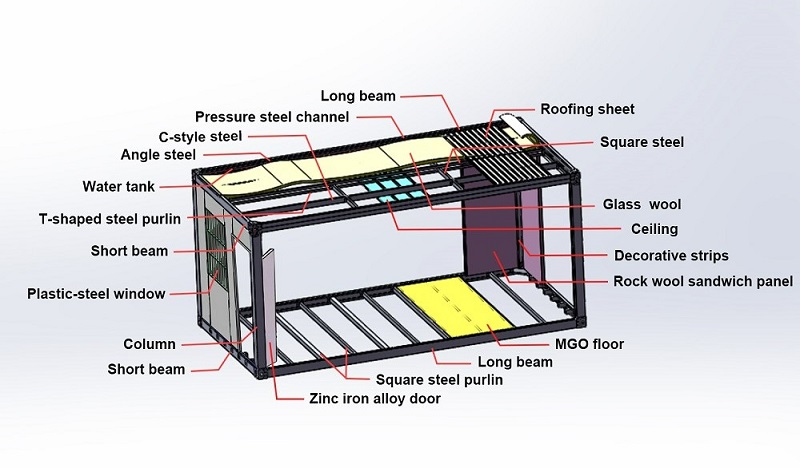

Below is the structure drawing of our standard container house, you can make some changes according to your needs, we will try our best to meet your design scheme.
5.Product Qualification of Shipping container frame detachable container house
We insist on using galvanized steel to manufacture frame materials to ensure the firmness and stability of the container house. Galvanized steel has better corrosion resistance, stronger coloring ability and more beautiful appearance after spraying and baking.
Our full range of shipping container frame detachable container houses are CE certified, managed and manufactured according to ISO system standards.
6. Deliver,Shipping And Serving of Shipping container frame detachable container house
Deliver Time: 3-15 days.
Shipping Type: Sea container transport or other options.
Custom Service:
1.Customize container size.
2.Customize different specifications of materials.
3.Custom container frame color for white,blue,black or other option.
4.Custom wallboard color.
5.Custom steel frame construction.
7.FAQ
Q1:What is your payment terms?
A1:The payment is T/T, L/C or other options.
Q2:Are you the factory or the trade company?
A2:We are specialized in manufacturing prefabricated modular container houses.Our factory is located in Foshan city,Guangdong Province,China.
Q3:What's your earliest delivery time?
A3: Delivery time for shipping container frame detachable container house depends on the quantity of your order, the delivery time is about 5-20 days, small orders can be shipped within 5 days.
Q4:What is the minimum order quantity?
A4:Our minimum order quantity is 6 sets detachable container houses, which is the loading capacity of 20GP freight container. But we suggest you to order 15 sets, which is the loading capacity of 40HQ freight container, so that your cost will be lower and the product price will be more competitive.
