1.Products Introduction of Flat Pack Building High Cost-effective Detachable Container House
Flat pack building high cost-effective detachable container house is a detachable design, easy to install on site, only 3 workers and 3 hours to complete it, efficient and convenient. It is made of high quality galvanized steel, strong and durable, can be reused for many times, conducive to energy conservation and environmental protection.
It can be lifted and transferred as a whole, and has no high requirements for the application site. Flat pack building high cost-effective detachable container house is widely used, such as engineering department office, conference room, restaurant kitchen, shower rooms, toilets, accommodation, warehouse and so on. It is so flexible that it can be assembled into a large house, and it is so rigid that it can be stacked at least three stories high.
2.Products Parameter (Specification) of Flat Pack Building High Cost-effective Detachable Container House
|
Name |
Flat pack container homes with steel structure roof |
|
Size |
Outside size:5960mm*3010mm*2810mm, |
|
Base |
Long beam:5760mm*(2.0-3.0mm)*2pcs, galvanized steel |
|
Short beam:2810mm*(2.0-3.0mm)*2pcs, galvanized steel |
|
|
Column:2470mm*(2.0-3.0mm)*4pcs, galvanized steel. |
|
|
Square steel purlin:2880*80*80*(1.6-1.7mm)*4pcs，2880*80*40*(1.6-1.7mm)*5pcs |
|
|
Roof |
Long beam:5760mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel |
|
Short beam:2810mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel |
|
|
Corner Fitting:4.5-5.0mm*4pcs, hot rolled galvanized steel |
|
|
Pressure steel channel:5730*183*2pcs，2780*183*2pcs |
|
|
Angle steel:5730*30*30*2pcs, |
|
|
C-style steel:1883*80*35**(1.0-1.2mm)*3pcs, |
|
|
Square steel:5735*40*40*(1.0-1.2mm)*1pc，2785*80*40*(1.0-1.2mm)*2pcs |
|
|
Roof decoration |
Roofing Sheet:2900mm*980*7pcs，2770mm*831*7pcs, |
|
Wall board |
Size:50mm EPS sandwich panel/Rock wool sandwich panel |
|
Steel sheet:0.286/0.326/0.376/0.426/0.476mm, |
|
|
Door/ |
2035mm*925mm Zinc iron alloy door with lock or optional door. |
|
Floor |
MGO floor or cement fiber floor |
These are the standard configuration materials for container housing, we can customize according to your specific needs.
3.Product Feature And Application of Flat Pack Building High Cost-effective Detachable Container House
The features of flat pack building high cost-effective detachable container house:
1. More than 80% prefabrication process, efficient construction.
2. Easy and quickly to assemble, wide range of applications.
3. Saving labor cost and construction cost.
4. It can be moved and transferred as a whole, easy to reuse, energy saving and environmental protection.
5. Fireproof and waterproof, good corrosion resistance, sound insulation, heat preservation, durable.
6. Using high quality raw materials, form firm structure and good stability.
The application of flat pack building high cost-effective detachable container house:
1. Portable office.
2. Prefabricated villa.
3. Camp dormitory.
4. Temporary store.
5. Large warehouse.
6. Exhibition hall, exhibition room.
7. Prefabricated container classroom and modular container school and so on.

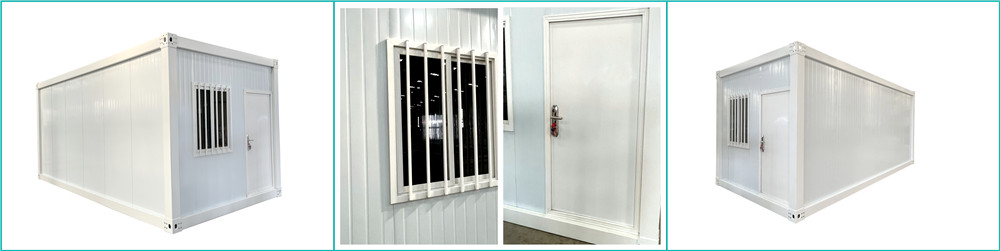

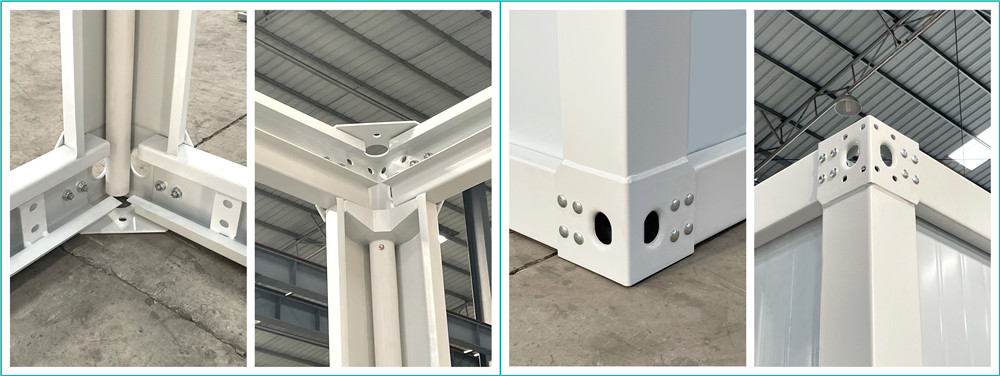

4.Product Details of Flat Pack Building High Cost-effective Detachable Container House
Please tell us if you have other needs, personalized service is our advantage.
5.Product Qualification of Flat Pack Building High Cost-effective Detachable Container House
High quality products come from:
1. The steel structure is made of high quality galvanized steel, with high quality coating and high temperature baking, the structure is firm, durable, not easy to rust, safe and reliable.
2. The thickness of beam and column material can be selected between 2.0-2.5 mm, and higher demand can also be proposed.
3. All prefabricated housing products have passed CE certification, and the company's production and management are strictly in accordance with ISO system standards.
6. Deliver,Shipping And Serving of Flat Pack Building High Cost-effective Detachable Container House
Deliver Time: 3-15 days.
Shipping Type: LCL, 40HQ or 20GP Container transport.
Custom Service:
1. The size and material specifications.
2. Steel structure can be designed other styles.
3. Spraying color can be customized.
4. The color of wallboard are optional.
7.FAQ
Q1:Are you a factory or trade company?
A1:We are specialized in manufacturing Flat pack building high cost-effective detachable container house.Our factory is located in Foshan,Guangdong,China.
Q2:What is your payment terms?
A2:The payment is T/T, L/C or other options.
Q3:Why choose us?
A3:Source manufacturers, factory wholesale prices, we can help you customize, more flexible, more efficient, and factory docking is the best procurement channel.
