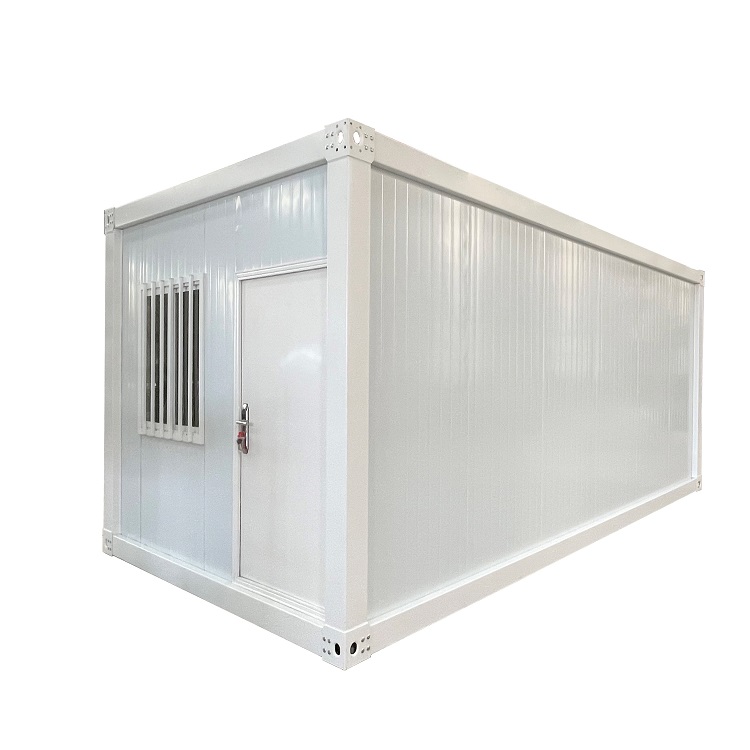

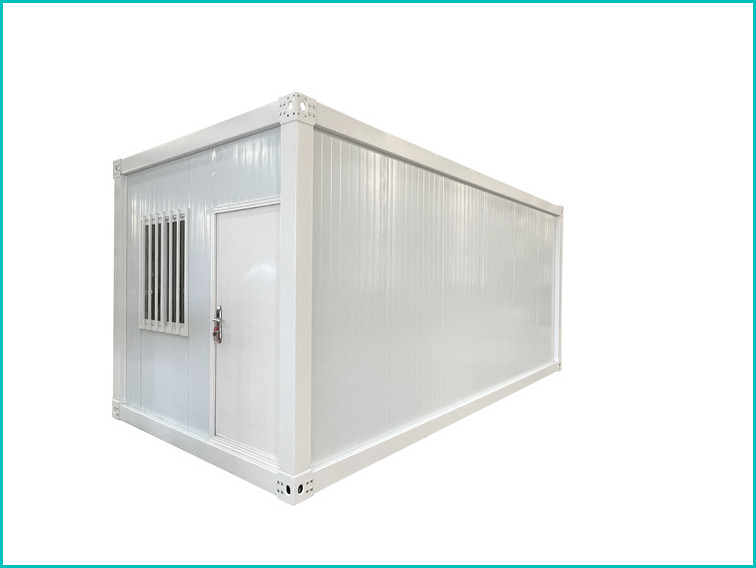

1.Products Introduction of medical office construction prefab detachable container isolation room
Medical office construction prefab detachable container isolation rooms have been the most popular product of the past two years. Its salient features are fast and easy to install, wide range of applications, low cost and efficient construction, and it can achieve the goal of being lower carbon and more environmentally friendly.
Prefab detachable container isolation rooms are easy to transport, can be used in any site you need, reusable and long service life, it is the best choice for temporary construction. Our efficient team will solve all kinds of solutions for you, welcome to contact us for cooperation.
2.Products Parameter (Specification) of medical office construction prefab detachable container isolation room
|
Name |
Prefab detachable container isolation room |
|
Sizes |
Outside size：5960mm*3010mm*2810mm（customized） |
|
|
Inside size：5735mm*2800mm*2500mm |
|

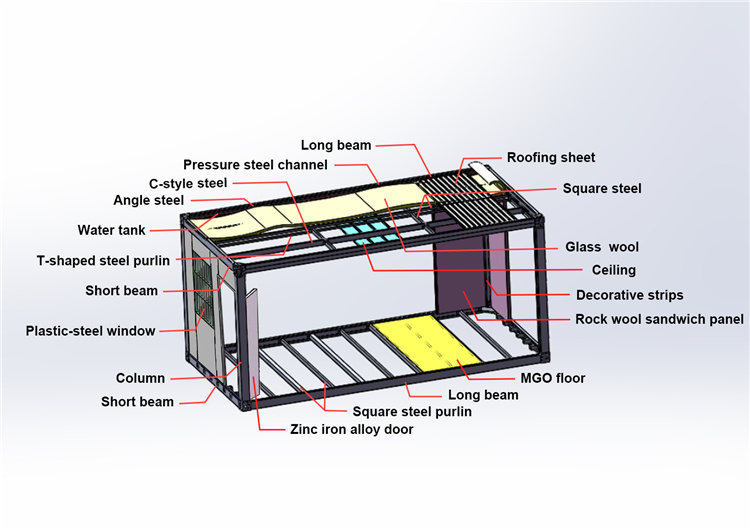

Base |
Long beam：5760mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel |
|
|
Short beam：2810mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel |
|
|
Column：2470mm*(2.0-3.0mm)*4pcs, hot rolled galvanized steel. |
|
|
Corner Fitting：4.5-5.0mm*4pcs |
|
|
Square steel purlin：2880*80*80*(1.6-1.7mm)*4pcs，2880*80*40*(1.6-1.7mm)*5pcs |
|
Roof |
Long beam：5760mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel |
|
|
Short beam：2810mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel |
|
|
Corner Fitting：4.5-5.0mm*4pcs, hot rolled galvanized steel |
|
|
Pressure steel channel：5730*183*2pcs，2780*183*2pcs |
|
|
Angle steel：5730*30*30*2pcs |
|
|
T-shaped steel for roof：1883*78*(1.0-1.2mm)*6pcs |
|
|
C-style steel：1883*80*35**(1.0-1.2mm)*3pcs |
|
|
Square steel：5735*40*40*(1.0-1.2mm)*1pc，2785*80*40*(1.0-1.2mm)*2pcs |
|
|
Water tank：5840*280*2pcs |
|
Roof decoration |
Roofing Sheet：2900mm*980*7pcs，2770mm*831*7pcs |
|
|
Other material：glass wool |
|
Wall |
Size：50mm EPS sandwich panel/Rock wool sandwich panel |
|
|
Color：white or other optional colors |
|
|
Steel sheet：0.286/0.326/0.376/0.426/0.476mm |
|
Door |
2035mm*925mm Zinc iron alloy door with lock or optional door |
|
Window |
1100mm*950mm*2pcs Plastic-steel window or optional window |
|
Floor |
MGO floor or cement fiber floor |
|
Total weight |
About 1300kg |
|
Other material |
Hardware,Water pipe,Wrap angle,Decorative strips,silicon sealant etc. |
You can change the materials and specifications of the container house if you have different requirements,welcome to contact us.
3.Product Feature And Application of medical office construction prefab detachable container isolation room

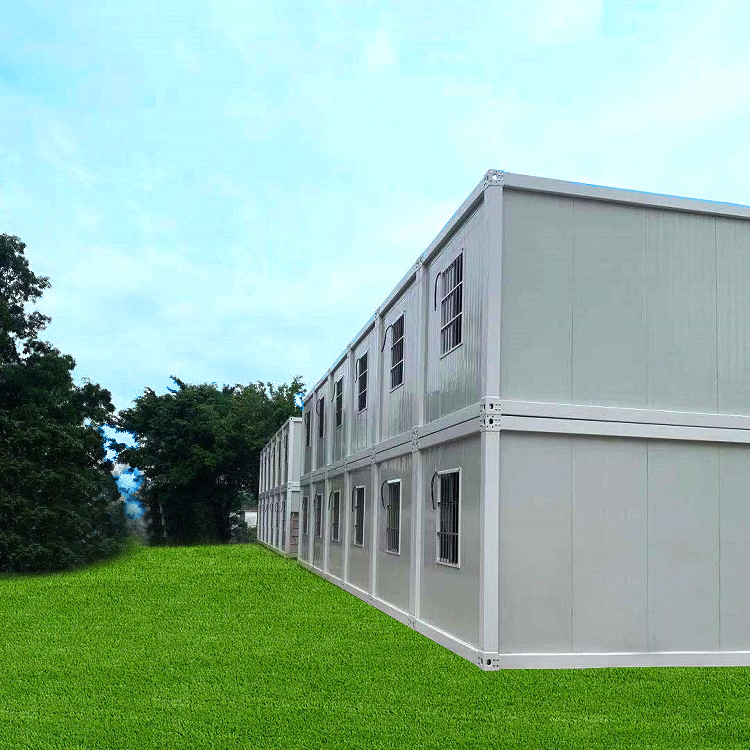

The advantage of prefab detachable container isolation room is waterproof,durable,Heat preservation, sound and heat insulation,easy to transport, quick and easy to install etc..It is widely used in on site office temporary housing, temporary classroom,luxury project department, temporary store, medical building housing, mining construction dormitory,etc..
Don't need cement foundation, using tools can achieve manual installation. It be used in inconvenient transportation or rural mountainous areas, on-site installation.It can achieve long-term residence by hot rolled galvanized steel after spraying and high temperature baking.It can be spliced together into large houses, giving you a spacious and comfortable home.
4.Product Details of medical office construction prefab detachable container isolation room

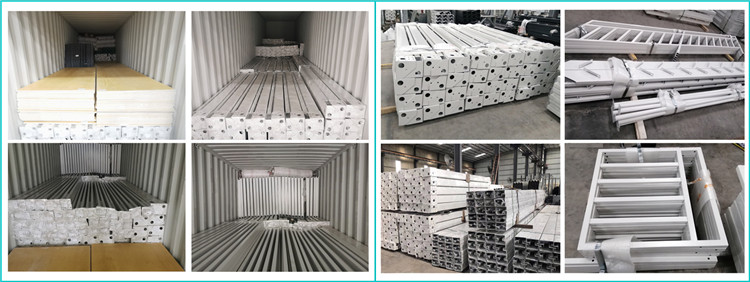

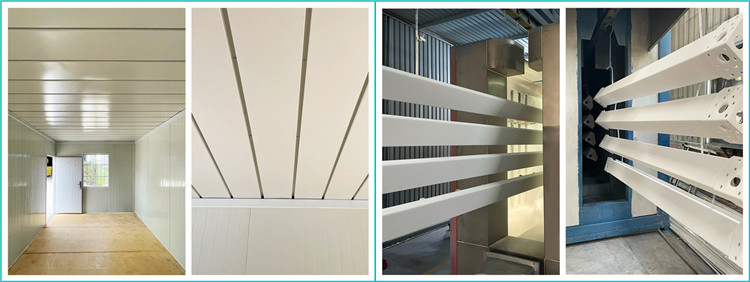

For the quality assurance of prefab detachable container isolation room, we control the production process, pay more attention to whether the production technology reaches the standard and insist on using high-quality materials. We also pay attention to the aesthetic degree of products, material packaging, in order to ensure customer experience.also pay attention to the aesthetic degree of products, material packaging, in order to ensure customer experience.
5.Product Qualification of medical office construction prefab detachable container isolation room

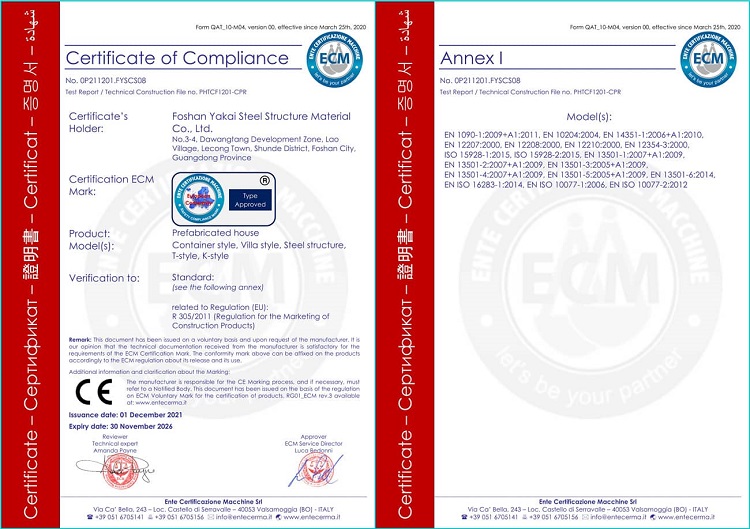

Medical office construction prefab detachable container isolation rooms are the patented products of Akay Company.All prefabricated building products are produced in accordance with the requirements CE safety standards.To ensure that the interests of users are protected.
6. Deliver,Shipping And Serving of medical office construction prefab detachable container isolation room

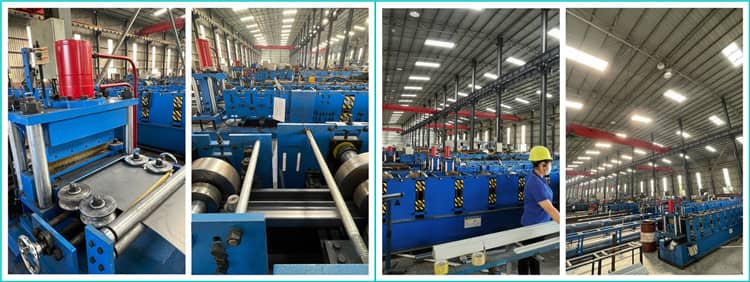

We have dozens of automatic production equipment, can large-scale production of medical office construction prefab detachable container isolation room.To ensure fast delivery, according to your order quantity, the delivery time is about 10-20 days. Small orders can be completed within 5 days.

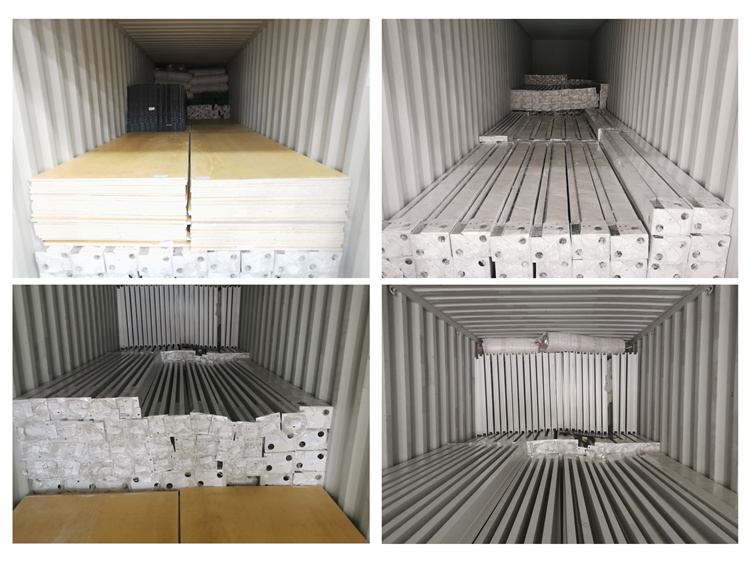

Type of shipping: container shipment or EX works
Our service: DIY design and can change the size according to your needs. Our team conducts remote installation guidance. Our automatic spraying and baking production line can meet your various needs for color, please refer to the following RAL color card for medical office construction prefab detachable container isolation room.
7.FAQ
Q1:Why do you have to choose us?
A1: We are a manufacturer of medical office construction prefab detachable container isolation room, you can get the best price.
Q2:What problems can we solve for you?
A2:In addition to the low price, our excellent R & D and design team can design matching medical office construction container isolation room according to the project plan, and provide graphic design and 3D renderings, so that the communication between us will be more efficient.
Q3:What are your terms of payment?
A3:Our terms of payment are L/C, T/T,etc.
