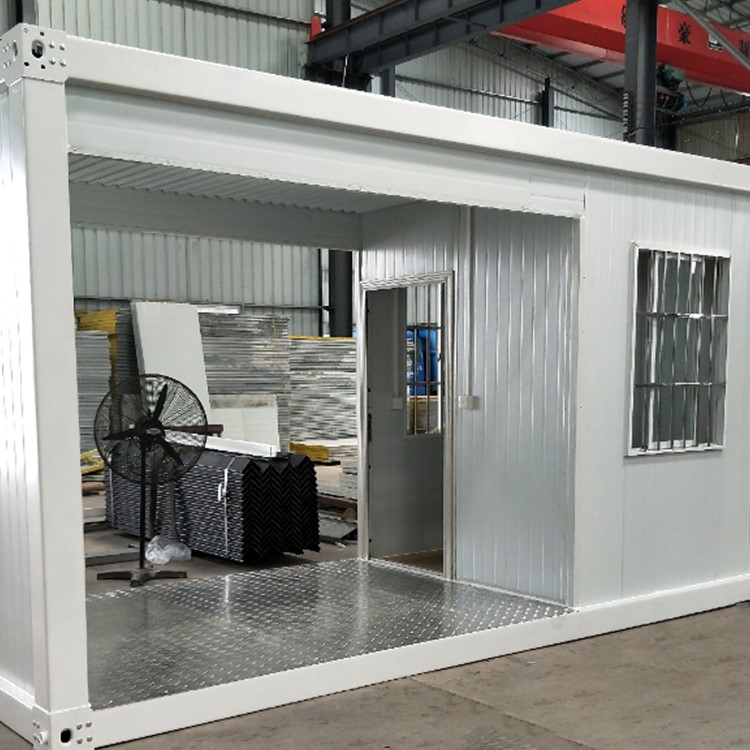

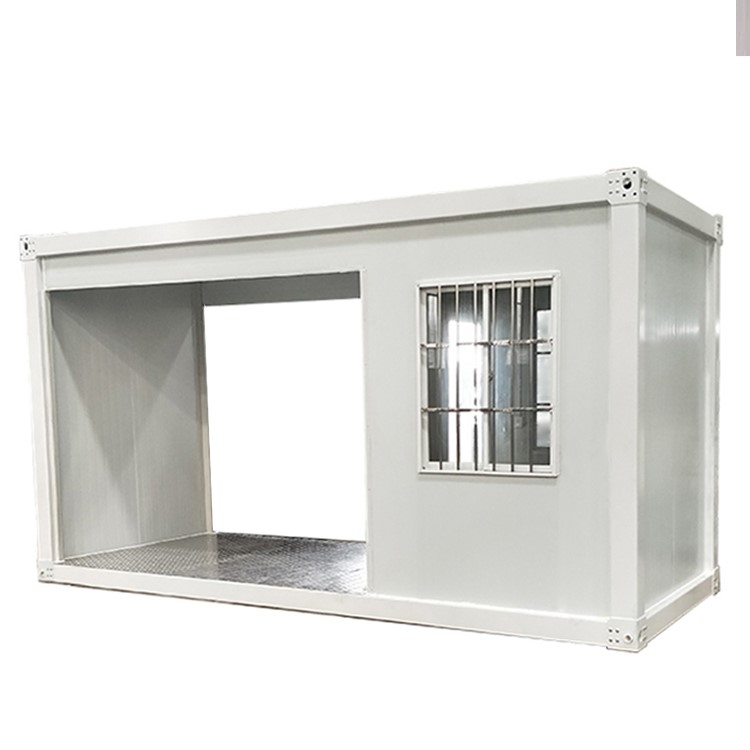

1.Products Introduction of modular construction companies prefabricated flat pack container guard room

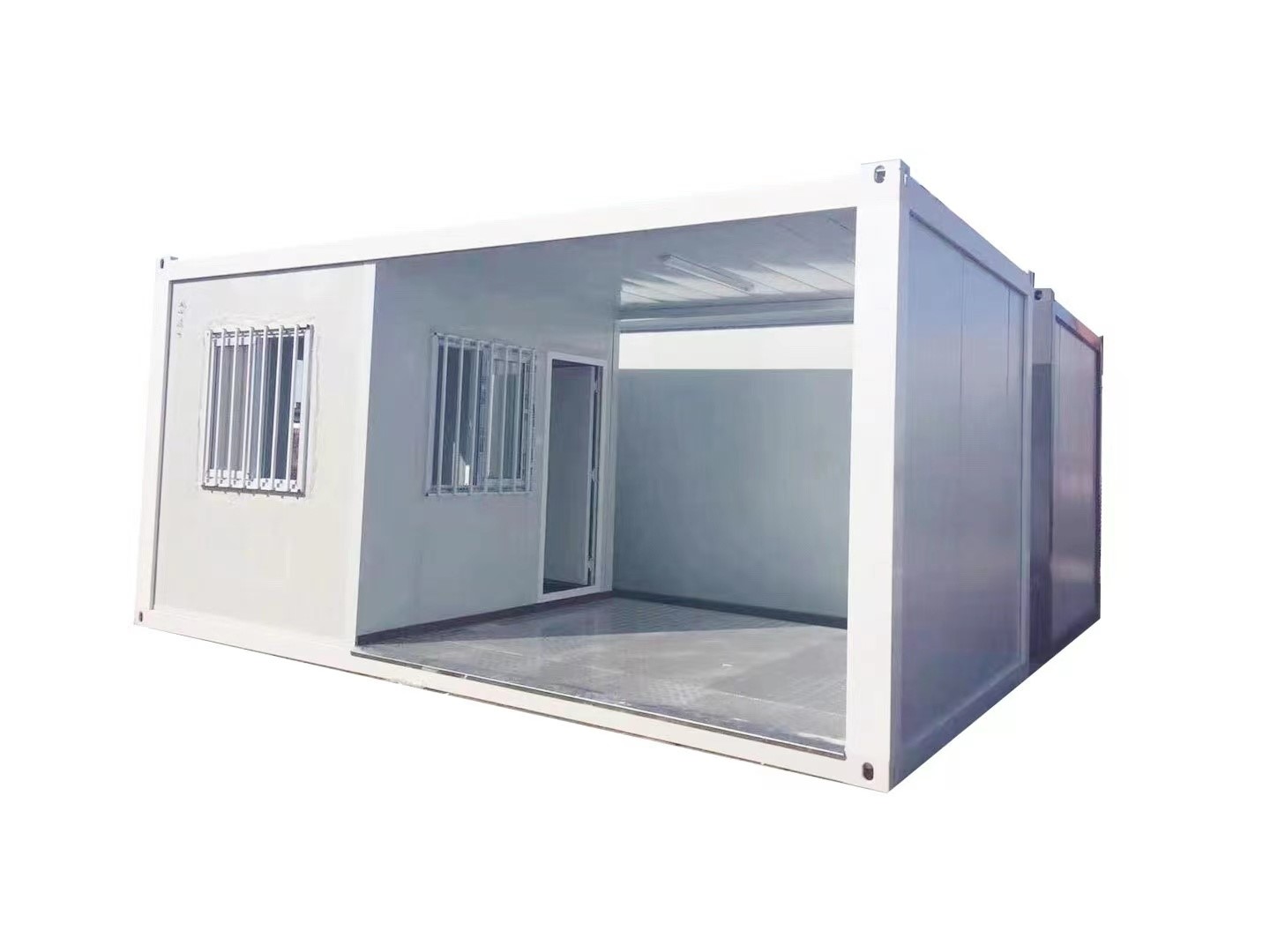

Modular construction companies prefabricated flat pack container guard room is widely used in construction sites, residential areas, commercial areas, holiday areas and so on. Its structure and size can be customized, container guard room configuration materials and appearance decoration can choose simple or luxurious, please contact us to manufacture exclusive container guard room for you.
2.Products Parameter (Specification) of modular construction companies prefabricated flat pack container guard room
|
Name |
Prefabricated flat pack container house |
|
Sizes |
Outside size：5960mm*3010mm*2810mm（customized） |
|
Inside size：5735mm*2800mm*2500mm |
|
|
Base |
Long beam：5760mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel |
|
Short beam：2810mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel |
|
|
Column：2470mm*(2.0-3.0mm)*4pcs, hot rolled galvanized steel. |
|
|
Corner Fitting：4.5-5.0mm*4pcs |
|
|
Square steel purlin：2880*80*80*(1.6-1.7mm)*4pcs，2880*80*40*(1.6-1.7mm)*5pcs |
|
|
Roof |
Long beam：5760mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel |
|
Short beam：2810mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel |
|
|
Corner Fitting：4.5-5.0mm*4pcs, hot rolled galvanized steel |
|
|
Pressure steel channel：5730*183*2pcs，2780*183*2pcs |
|
|
Angle steel：5730*30*30*2pcs |
|
|
T-shaped steel for roof：1883*78*(1.0-1.2mm)*6pcs |
|
|
C-style steel：1883*80*35**(1.0-1.2mm)*3pcs |
|
|
Square steel：5735*40*40*(1.0-1.2mm)*1pc，2785*80*40*(1.0-1.2mm)*2pcs |
|
|
Water tank：5840*280*2pcs |
|
|
Roof decoration |
Roofing Sheet：2900mm*980*7pcs，2770mm*831*7pcs |
|
Other material：glass wool |
|
|
Wall |
Size：50mm EPS sandwich panel/Rock wool sandwich panel |
|
Color：white or other optional colors |
|
|
Steel sheet：0.286/0.326/0.376/0.426/0.476mm |
|
|
Door |
2035mm*925mm Zinc iron alloy door with lock or optional door |
|
Window |
1100mm*950mm*2pcs Plastic-steel window or optional window |
|
Floor |
MGO floor or cement fiber floor |
|
Total weight |
About 1300kg |
|
Other material |
Hardware,Water pipe,Wrap angle,Decorative strips,silicon sealant etc. |

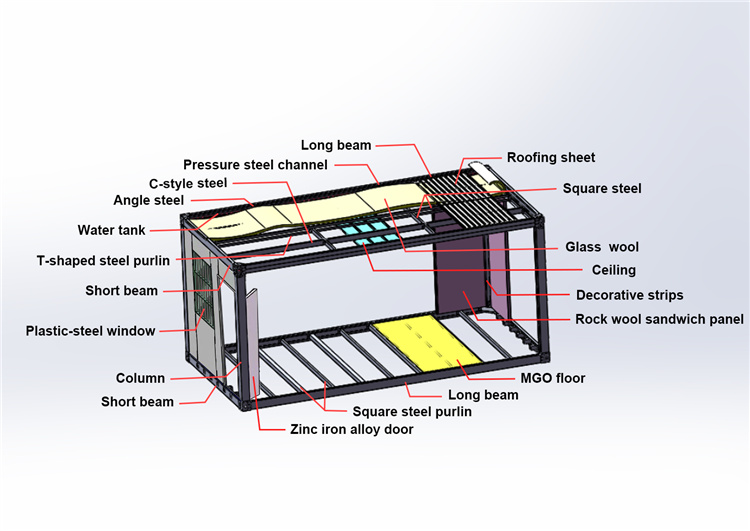

The above is the configuration list of a standard container house. We will install your requirements to develop the container guard room plan and materials, please contact us as soon as possible.
3.Product Feature And Application of modular construction companies prefabricated flat pack container guard room

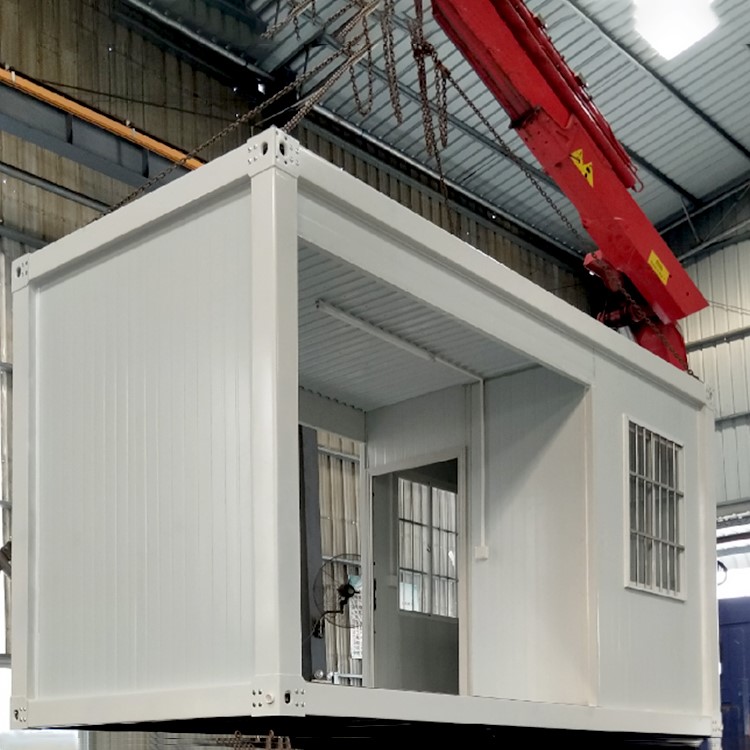

The advantage of prefabricated flat pack container guard room is waterproof, fire prevention,heat preservation,easy to ship and maintain,flexible layout and so on.Our flat pack container guard room can be quickly installed on site. It can be quickly assembled with simple installation tools without the assistance of cranes and other mechanical equipment.
Our prefabricated flat pack container guard room adopts hot-rolled galvanized steel after spraying and high-temperature baking can be long office, because of the stability and firmness of the steel structure to ensure the service life of up to 20 years.Container guard room can save construction costs and time.

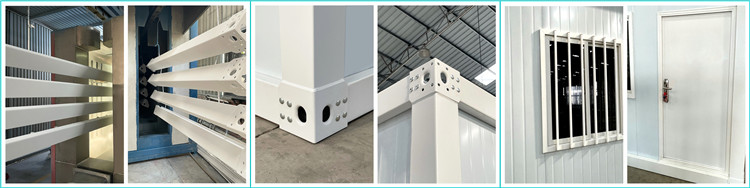

4.Product Details of modular construction companies prefabricated flat pack container guard room

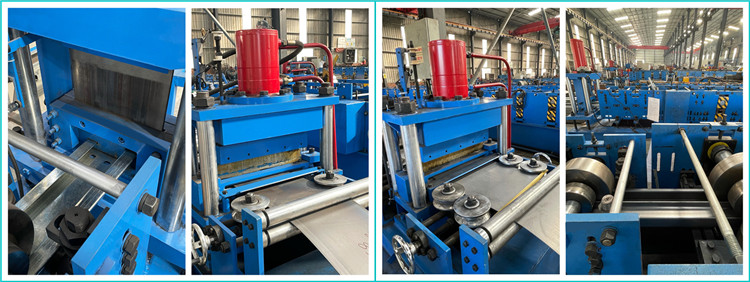

For the quality assurance of modular construction companies prefabricated flat pack container guard room, We control the whole process of production and pay attention to detail management.Adhere to the use of high-quality materials, to ensure the quality of products.
5.Product Qualification of modular construction companies prefabricated flat pack container guard room

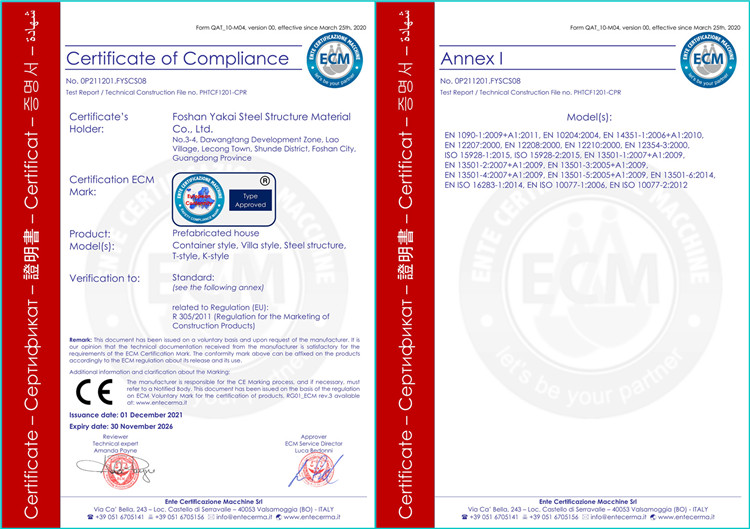

Modular construction companies prefabricated flat pack container guard room have become very popular in recent years,because of the flexibility of their structure and shape. We insist on manufacturing high quality container guard room, the whole series of prefabricated buildings are in line with CE certification standards. We are ISO quality management system certification standardized company, strictly in accordance with the relevant provisions of management and production.
6. Deliver,Shipping And Serving of modular construction companies prefabricated flat pack container guard room

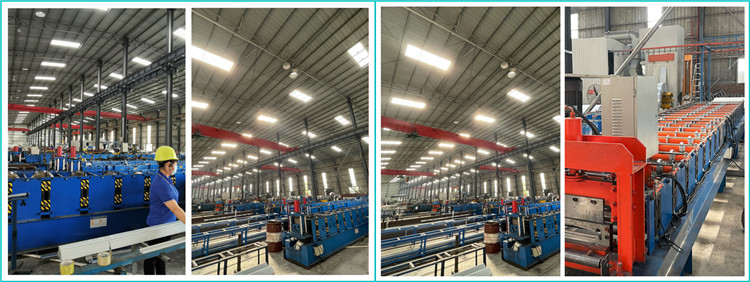

We have enough excellent equipment and teams to achieve large-scale production of modular construction companies prefabricated flat pack container guard room.Fast delivery can be fully guaranteed.The delivery time depends on your order quantity, the quickest delivery time is within 5 days.

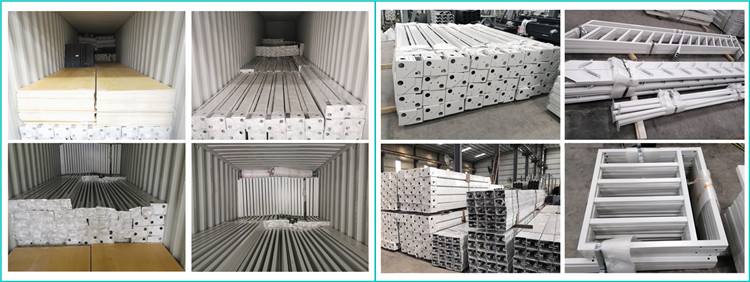

Type of shipping: container shipment or EX works
Our service:the dimensions of modular construction companies prefabricated flat pack container guard room, the thickness of the steel structure and sandwich panel, and the color of the container house can all be customized according to your needs. You can also change part of the container house structure. We provide installation videos and instructions to facilitate on-site installation..Please refer to the following RAL color card.
7.FAQ
Q1:What's your minimum order quantity?
A1: 1* 40HQ can be loaded about 15 sets of 6m*3m modular construction companies prefabricated flat pack container guard room.If customized small size container guard room can load more.
Q2:What is your payment terms?
A2:The payment is T/T and L/C.
Q3:What kind of prefabricated housing do we offer?
A3:.Fast and easy to install detachable container house,flat pack container house,prefabricated T homes and prefabricated K homes,portable sandwich panel toilet and portable security house and so on.
