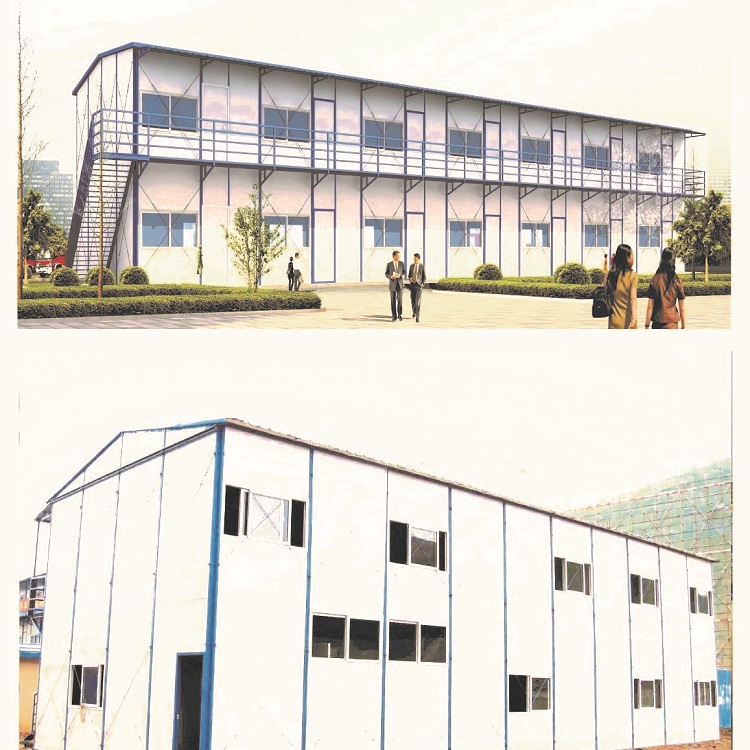

1.Products Introduction of Mining camp construction prefabricated K homes warehouse
Prefabricated K homes warehouse is modular building, the main components are C steel, Angle steel, sandwich panel,cement fiber floor and so on. Economic environmental protection and practical.Welcome to order our prefabricated K homes standard components, if your project has special needs, we are also willing to tailor for you, our excellent design team will provide efficient solutions.
2.Products Parameter (Specification) of Mining camp construction prefabricated K homes warehouse
| Prefabricated K-type Homes Materials (Double slopes) | |
| Part Name | Material Specifications |
| Column (double layer) | Sprayed baking double C80*1.5mm purlin |
| Column (single layer) | Sprayed baking double C80*1.5mm purlin |
| Ground beam | Galvanized C80*1.1mm purlin |
| Ring beam | Galvanized C80*1.1mm purlin |
| Floor beam(4K) | 400mm truss girder,galvanized C80*1.7&C50*1.1 purlin |
| Floor beam(3K) | 400mm truss girder,galvanized C80*1.5&C50*1.1 purlin |
| Roofing herringbone beam(4K) | Herringbone truss beam,galvanized C80*1.3&C50*1.1 purlin |
| Roofing herringbone beam(3K) | Herringbone truss beam,galvanized C80*1.1&C50*1.1 purlin |
| Horizontal support column | Galvanized C50*1.1mm purlin |
| Floor purlin | Galvanized C80*1.1mm purlin |
| Roof purlin | Galvanized C50*25*1.1mm purlin |
| Shelf bracket | Sprayed baking C80*1.7mm purlin |
| Stairs bracket | Sprayed baking C80*1.5mm purlin |
| Stair case | Integral spray color baking,C160*2.0 beam,2.3mm patterns plate*14pcs |
| Corridor plate | Paint spraying,patterns plate 2.3mm |
| Fence railing | Sprayed baking, □30*1.0 square steel tube,L40 angle steel |
| Handrail | Sprayed baking,□30*1.0 square steel tube,angle steel |
| Rain awning frame | Sprayed baking,□30*1.0 square steel tube |
| Wallboard | Glass wool sandwich board,double 0.17mm |
| Roofing tiles | Glass wool corrugated sandwich panel,Upper steel plate 0.236mm,Underside steel plate 0.17mm |
| Floorboard | Plywood 14mm |
| Window | Plastic steel sliding window |
| Door | Steel frame&Fireproof sandwich panel door |
| The specifications and thickness of the above materials can be changed according to your needs, please tell us your needs. | |

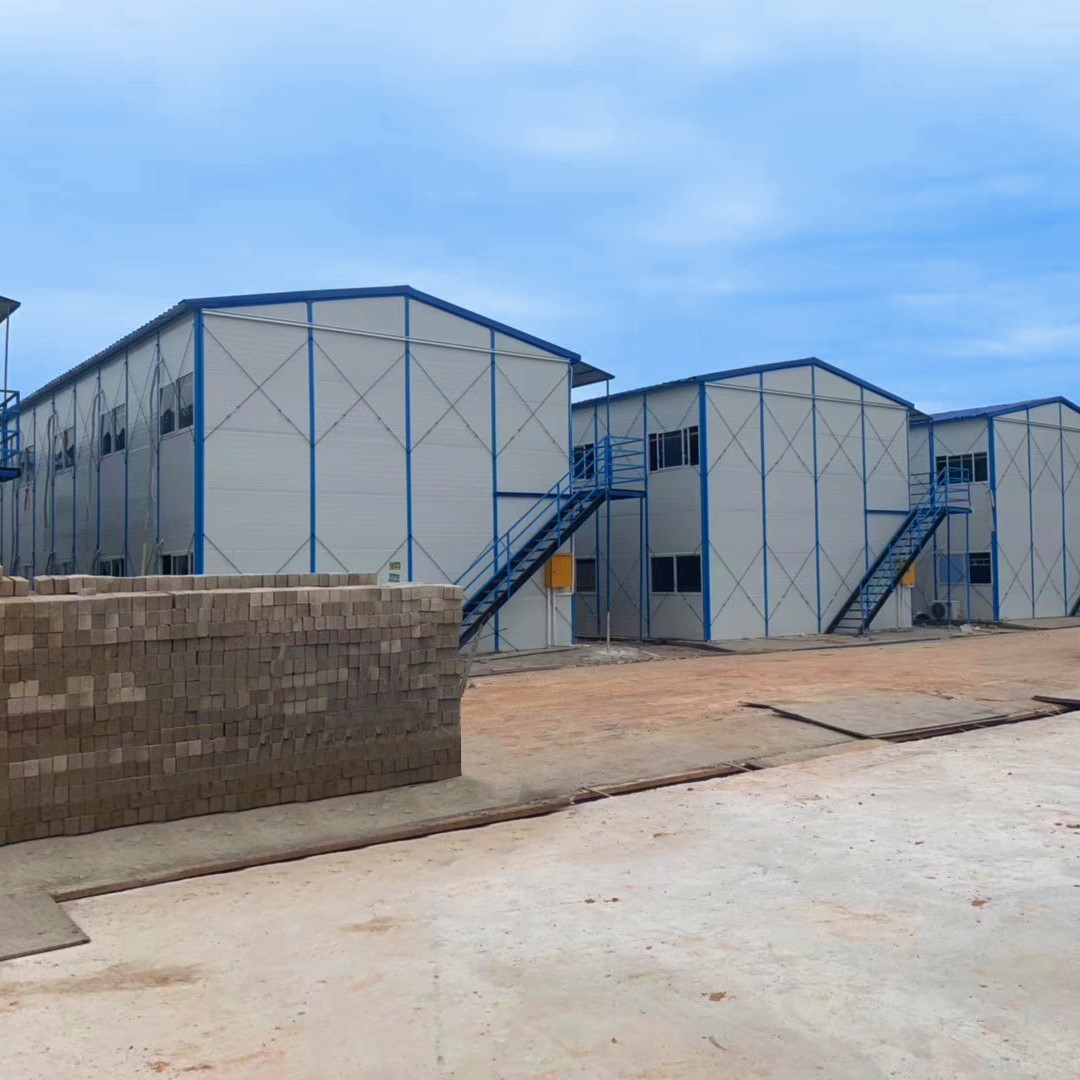

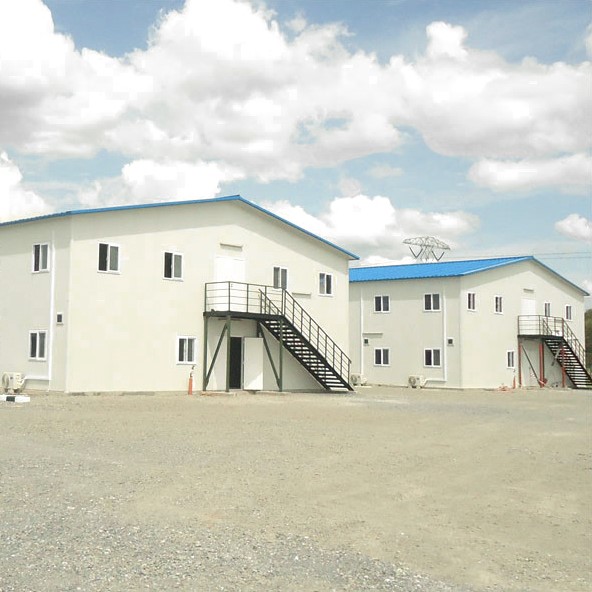

3.Product Feature And Application of Mining camp construction prefabricated K homes warehouse
Our prefabricated K homes warehouse adopts hot-rolled galvanized steel after spraying and high-temperature baking can be used for a long time.Greatly saving the use cost for you.
4.Product Details of Mining camp construction prefabricated K homes warehouse

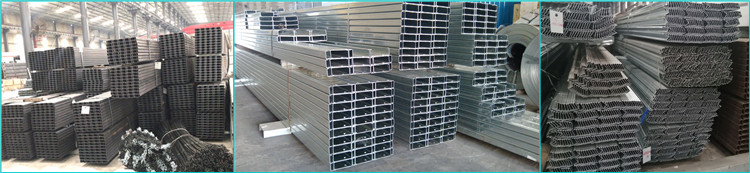

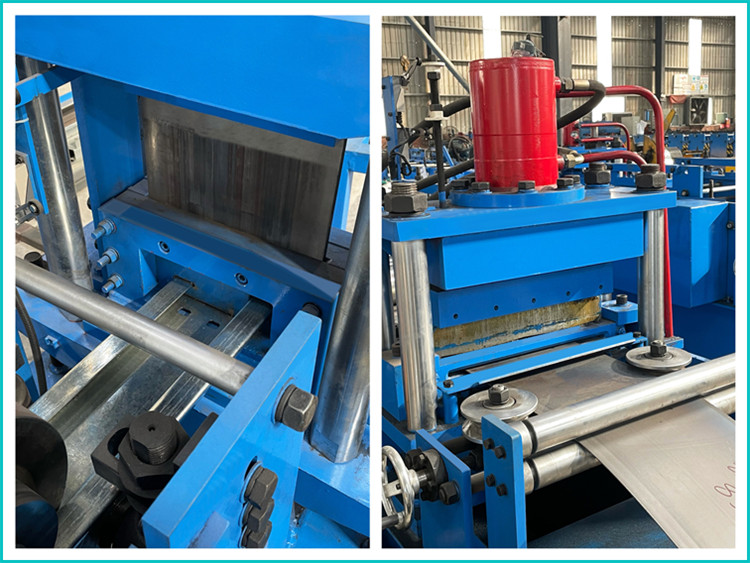

For the quality assurance of prefabricated K homes warehouse,our team will plan and design your project requirements, make professional drawings, purchase high-quality raw materials, quality control person to check the production process layer upon layer, keep improving, only to present the best products to you.
5.Product Qualification of Mining camp construction prefabricated K homes warehouse

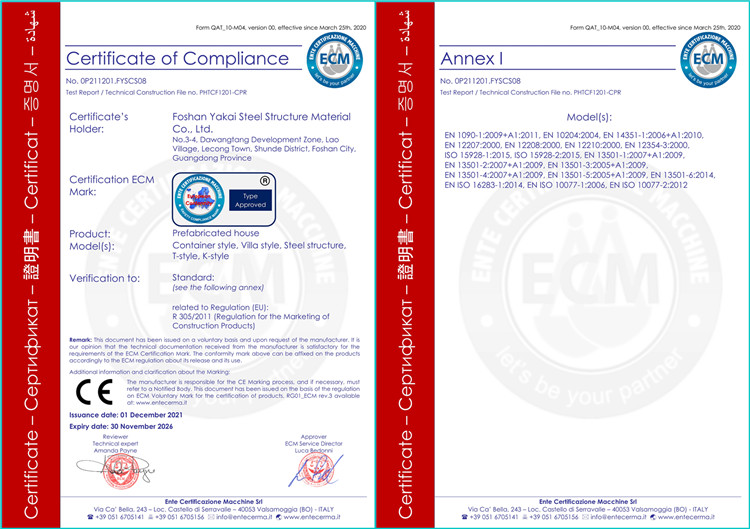

Because the mining camp construction prefabricated K homes warehouse has many advantages.It has been best-selling for more than ten years, but it is still loved by many customers.Our all prefabricated steel structure materials meet CE safety certification standards and are managed and produced according to ISO system standards.
6. Deliver,Shipping And Serving of Mining camp construction prefabricated K homes warehouse

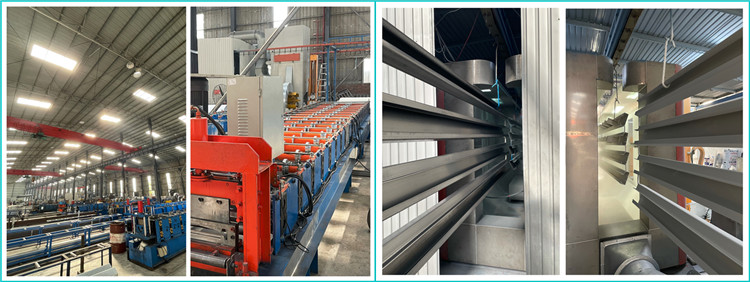

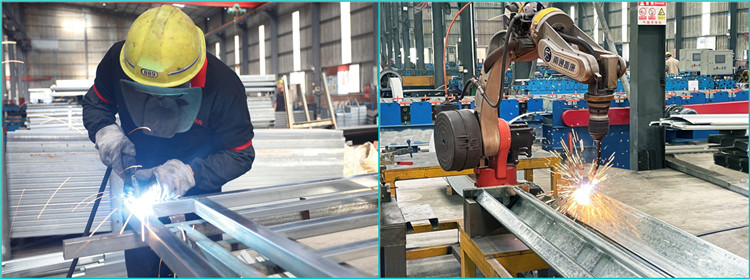

We have 10,000 square meters operation area,more than 30 sets professional production equipment and 10 years experience of R&D and production,to achieve large-scale production of mining camp construction prefabricated K homes warehouse.Our delivery time is 5-20 days, the delivery time depends on your order quantity.

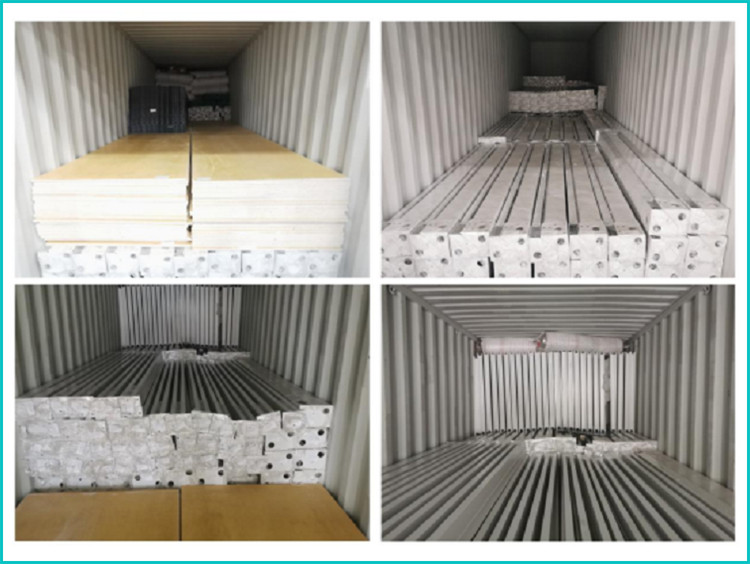

Type of shipping: container shipment or EX works
The size, thickness, color and accessories of the mining camp construction prefabricated K homes warehouse can be produced according to your needs. We provide installation instructions. Please refer to RAL color card below for color.
7.FAQ
Q1:Why do you have to choose us?
A1: We are a steel frame factory,you can get a lower price of mining camp construction prefabricated K homes warehouse directly trough us.
Q2:What is your payment terms?
A2:The payment is T/T, L/C,Western Union and so on.
Q3:Compared to other companies，what advantage do you have?
A3:We are the source factory of prefabricated modular building materials.We achieve low cost and low price through large-scale production, more than 30 industry-leading patented technologies to achieve product innovation.We have many prefabricated products, including detachable container houses, flat pack container houses, luxury container villas, prefabricated T homes, prefabricated K homes, modern modular container office buildings, camp dormitories and so on.
