1.Products Introduction of Modular detachable flat pack container house China prefab container homes
Modular detachable flat pack container house China prefab container homes are a detachable design that can be dismantled and reassembled for easy reuse. If the transportation is not convenient in areas where cranes or forklifts cannot be provided. Modular detachable flat pack container house China prefab container homes are widely used, such as temporary office, residential, temporary dormitory, temporary stores, sentry room,exhibition hall,warehouse and more.It can be a single room or grouped into a large house, which can be built up to three floors.
2.Products Parameter (Specification) of Modular detachable flat pack container house China prefab container homes
|
Name |
Detachable Flat pack container homes with steel structure roof |
|
Size |
Outside size:5960mm*3010mm*2810mm, |
|
Base |
Long beam:5760mm*(2.0-3.0mm)*2pcs, galvanized steel |
|
Short beam:2810mm*(2.0-3.0mm)*2pcs, galvanized steel |
|
|
Column:2470mm*(2.0-3.0mm)*4pcs, galvanized steel. |
|
|
Square steel purlin:2880*80*80*(1.6-1.7mm)*4pcs，2880*80*40*(1.6-1.7mm)*5pcs |
|
|
Roof |
Long beam:5760mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel |
|
Short beam:2810mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel |
|
|
Corner Fitting:4.5-5.0mm*4pcs, hot rolled galvanized steel |
|
|
Pressure steel channel:5730*183*2pcs，2780*183*2pcs |
|
|
Angle steel:5730*30*30*2pcs, |
|
|
C-style steel:1883*80*35**(1.0-1.2mm)*3pcs, |
|
|
Square steel:5735*40*40*(1.0-1.2mm)*1pc，2785*80*40*(1.0-1.2mm)*2pcs |
|
|
Roof decoration |
Roofing Sheet:2900mm*980*7pcs，2770mm*831*7pcs, |
|
Wall board |
Size:50mm EPS sandwich panel/Rock wool sandwich panel |
|
Steel sheet:0.286/0.326/0.376/0.426/0.476mm, |
|
|
Door/ |
2035mm*925mm Zinc iron alloy door with lock or optional door. |
|
Floor |
MGO floor or cement fiber floor |
These are the standard configuration materials for container housing, we can customize according to your specific needs.
3.Product Feature And Application of Modular detachable flat pack container house China prefab container homes
The features of modular detachable flat pack container house China prefab container homes:
1. More than 80% prefabrication process, efficient construction.
2. Easy and quickly to assemble, wide range of applications.
3. Saving labor cost and construction cost.
4. It can be moved and transferred as a whole, easy to reuse, energy saving and environmental protection.
5. Fireproof and waterproof, good corrosion resistance, sound insulation, heat preservation, durable.
6. Using high quality raw materials, form firm structure and good stability.
The application of modular detachable flat pack container house China prefab container homes:
1. Site project department, container offices and container meeting rooms.
2. Prefabricated kitchen, container dining room, portable toilet, container shower room.
3. Temporary container dormitory, temporary container warehouse.
4. Dormitory in the mining camp.
5. Temporary container shelter.
6. Medical room, quarantine room, container clinic, medical room.
7. Customized container commercial shops and commercial blocks.
8. Container hotel, container farm house and so on.
.

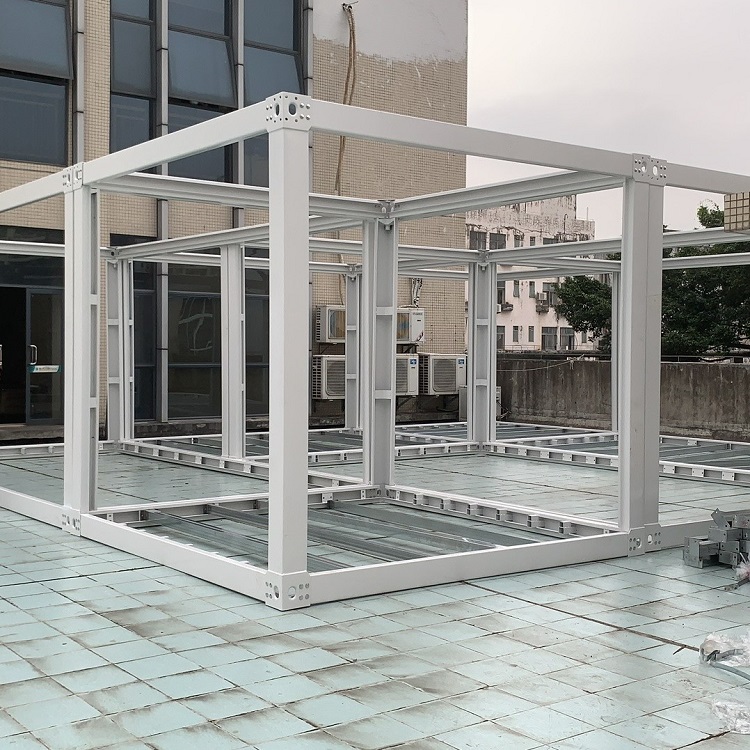

4.Product Details of Modular detachable flat pack container house China prefab container homes

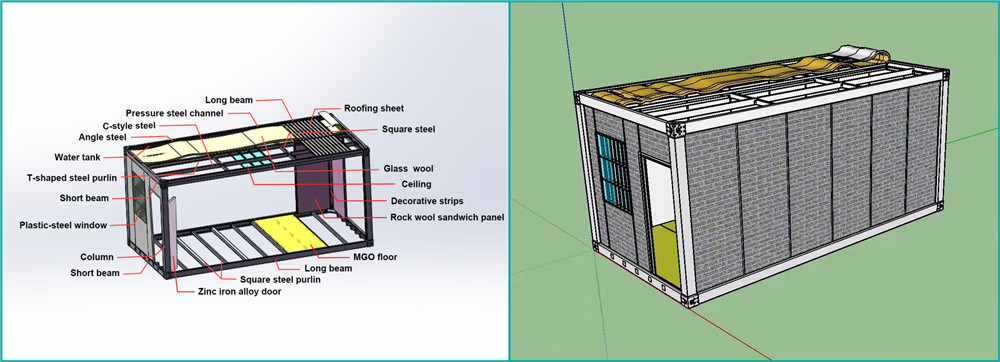

Below are the structure diagrams of our standard container house. Let us know if you have different needs.
5.Product Qualification of Modular detachable flat pack container house China prefab container homes
High quality products come from:

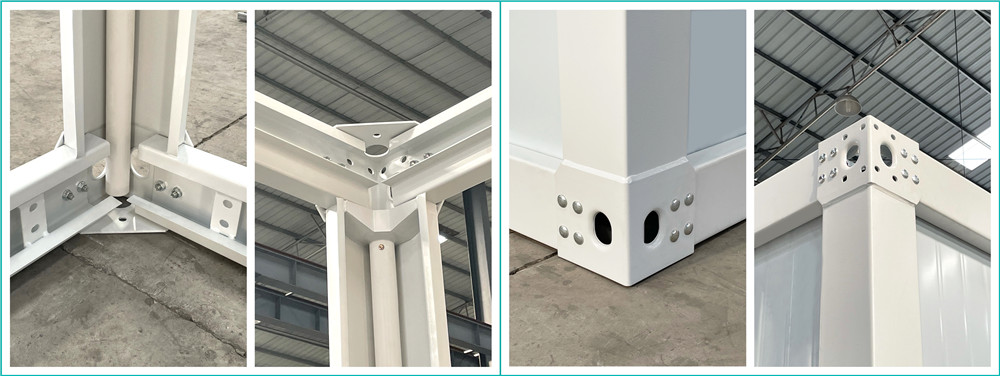

1. The steel structure is made of high quality galvanized steel, with high quality coating and high temperature baking, the structure is firm, durable, not easy to rust, safe and reliable.
2. The thickness of beam and column material can be selected between 2.0-2.5 mm, and higher demand can also be proposed.

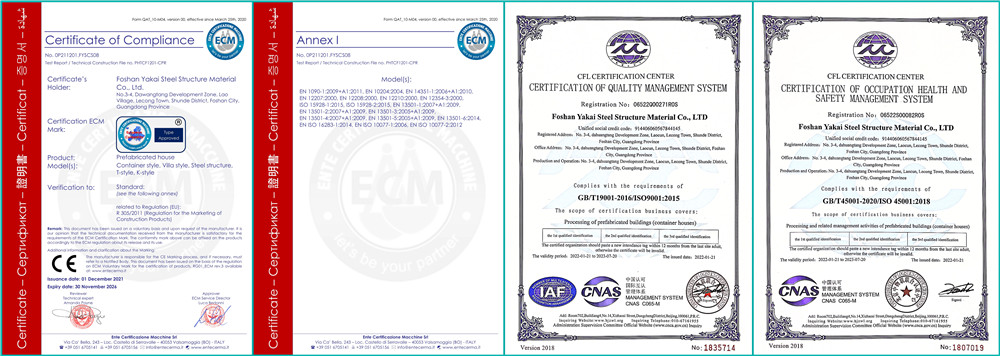

3. All prefabricated housing products have passed CE certification, and the company's production and management are strictly in accordance with ISO system standards.
6. Deliver,Shipping And Serving of Modular detachable flat pack container house China prefab container homes
Deliver Time: 3-15 days.
Shipping Type: LCL, 40HQ or 20GP Container transport.
Custom Service:
1. The size and material specifications.
2. Steel structure can be designed other styles.
3. Spraying color can be customized.
4. The color of wallboard are optional.
7.FAQ
Q1:Are you a factory or trade company?
A1:We are specialized in manufacturing modular detachable flat pack container house China prefab container homes.Our factory is located in Foshan,Guangdong,China.
Q2:What is your payment terms?
A2:The payment is T/T, L/C or other options.
Q3:What's your minimum order quantity(MOQ)?
A3: Our minimum order quantity is 6 sets of detachable container house. Considering logistics cost, we suggest you to order at least 15 sets, which is the max loading capacity of 40HQ freight container.
Q4:What's your earliest delivery time?
A4: Delivery time for detachable container house depends on the quantity of your order, the delivery time is about 5-15 days, small orders can be shipped within 5 days.
