1.Products Introduction of Container Home China Modular Accommodation Units Flat Pack Container House
Container home china modular accommodation units flat pack container house is detachable design, flexible disassembly and fixation. It can be installed manually without lifting machinery, saving you construction costs and moving easily. Made of galvanized steel by sprayed and baked at high temperatures, with a service life of more than 20 years. The thickness of galvanized steel materials are usually 2.0-2.5 mm, and the dimensions of container home china modular accommodation units flat pack container house can be customized so that the house can be combined into larger spaces.
2.Products Parameter (Specification) of Container Home China Modular Accommodation Units Flat Pack Container House
|
Name |
Detachable flat pack container house with EPS sandwich panel roof |
|
Sizes |
Outside size：6000mm*3000mm*2750mm（customized） |
|
Inside size：5790mm*2800mm*2500mm |
|
|
Base |
Long beam：5800mm*(2.0-3.0mm)*2pcs,hot rolled galvanized steel. |
|
Short beam：2800mm*(2.0-3.0mm)*2pcs,hot rolled galvanized steel. |
|
|
Column：2435mm*(2.0-3.0mm)*4pcs,hot rolled galvanized steel. |
|
|
Corner Fitting：4.5-5.0mm*4pcs |
|
|
Diagonal brace：300mm*4pcs |
|
|
Square steel purlin：2890*80*80*(1.6-1.7mm)*4pcs，2890*80*40*(1.6-1.7mm)*5pcs |
|
|
Roof |
Long beam：5800mm*(2.0-3.0mm)*2pcs,hot rolled galvanized steel. |
|
Short beam：2800mm*(2.0-3.0mm)*2pcs,hot rolled galvanized steel. |
|
|
Corner Fitting：4.5-5.0mm*4pcs,hot rolled galvanized steel. |
|
|
style pressure steel channel： |
|
|
Square steel：2865*35*16*(1.0-1.2mm)*6pcs |
|
|
EPS sandwich panel：2870*950*50mm*6.5pcs, |
|
|
Wall |
Size：50mm EPS sandwich panel or optional materials |
|
Color：white or other optional colors |
|
|
Steel sheet：0.286/0.326/0.376/0.426/0.476mm |
|
|
Corner trim strip： |
|
|
Door |
2035mm*925mm Zinc iron alloy door with lock or optional door |
|
Window |
1100mm*950mm*2pcs Plastic-steel window or optional window |
|
Floor |
MGO floor or cement fiber floor |
|
Total weight |
About 1000kg |
|
Other material |
Hardware,Decorative strips,silicon sealant etc. |
The above is the configuration list of a standard container house. If you want to change some materials, please tell us. We will design and produce it as your needs.
3.Product Feature And Application of Container Home China Modular Accommodation Units Flat Pack Container House
The features of container home china modular accommodation units flat pack container house :
1. Natural drainage, no internal drainage facilities.
The application of container home china modular accommodation units flat pack container house:
1.Container farmhouse.
4.Product Details of Container Home China Modular Accommodation Units Flat Pack Container House

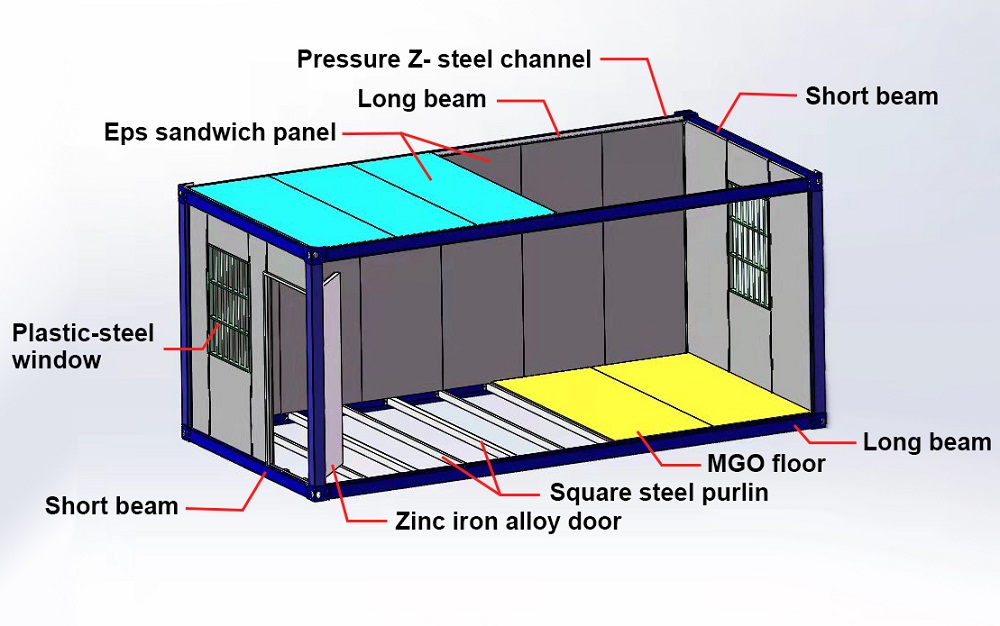

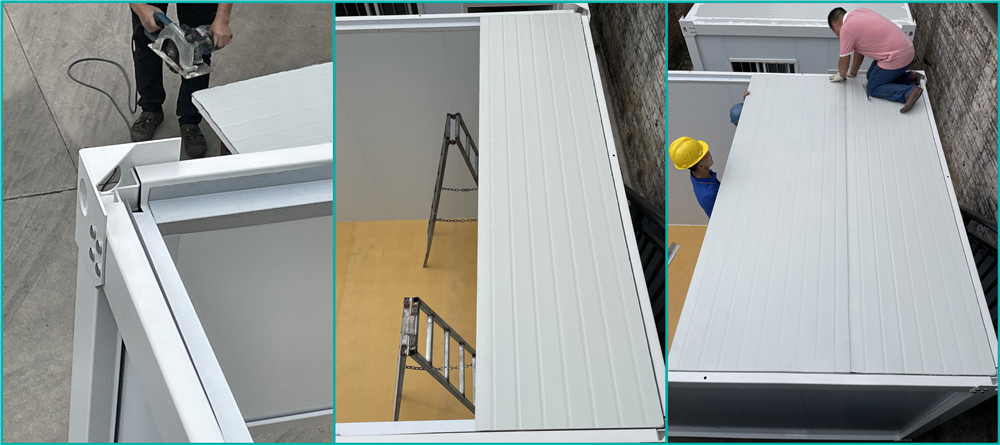

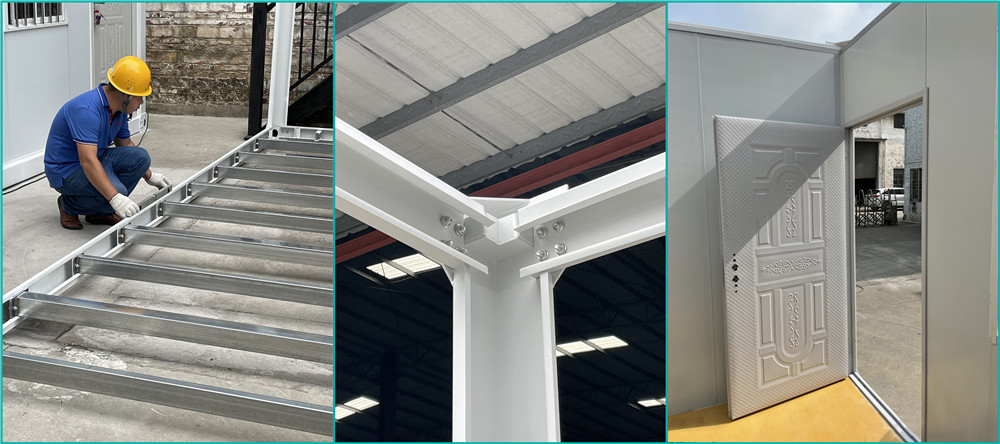

Below is the structure drawing of our standard container house, you can make some changes according to your needs, we will try our best to meet your design scheme.
5. Product Qualification of Container Home China Modular Accommodation Units Flat Pack Container House
High quality products from:
1. Made of high quality galvanized steel with high strength.
2. The main frame is made of high quality coating material, which is corrosion-resistant, not easy to rust and more beautiful after high temperature baking.
3. The thickness of the main frame material can be adjusted according to the actual need, the thickness of the beam and column can be 2.0-2.5 mm, the bottom square steel can be 1.5-1.7 mm, good firmness, safe and reliable.
4. Container houses have passed CE certification, Akay company in accordance with ISO system standards management and manufacturing.
6. Deliver,Shipping And Serving of Container Home China Modular Accommodation Units Flat Pack Container House
Deliver Time: 3-15 days.
Shipping Type: Sea container transport or other options.
Custom Service:
1. Container size can be customized.
2. Container material specifications can be customized.
3. Spray color is optional.
4. Wallboard color optional.
7. FAQ
Q1:Are you the factory or the trade company?
A1:We are specialized in manufacturing container home China modular accommodation units flat pack container house.Our factory is located in Foshan city,Guangdong Province,China.
A2:Our minimum order quantity is 6 sets flat pack container houses, which is the loading capacity of 20GP freight container. But we suggest you to order 15 sets, which is the loading capacity of 40HQ freight container, so that your cost will be lower and the product price will be more competitive.
Q3:What advantage do you have?
A3:We are one of the top ten manufacturers in China, you can get a more competitive price by purchasing from the source factory. We have more than 10 years experience of R&D and production, and dozens of patented technologies. Technology and product innovation is our core competitiveness. We have standardized products and non-standard customized services.We have a more flexible mode of operation.
