1.Products Introduction of China Site Office Cabin Prefab Container Home Flat Pack Container House
China site office cabin prefab container home flat pack container house adopts detachable design, which is convenient for installation and recycling. It can save labor costs, save construction costs, and save use costs. It can be used as temporary housing or long-term residential housing. China site office cabin prefab container home flat pack container house can be custom-sized, allowing homes to be combined into larger spaces.
2.Products Parameter (Specification) of China Site Office Cabin Prefab Container Home Flat Pack Container House
|
Name |
Detachable flat pack container house with EPS sandwich panel roof |
|
Sizes |
Outside size：6000mm*3000mm*2750mm（customized） |
|
Inside size：5790mm*2800mm*2500mm |
|
|
Base |
Long beam：5800mm*(2.0-3.0mm)*2pcs,hot rolled galvanized steel. |
|
Short beam：2800mm*(2.0-3.0mm)*2pcs,hot rolled galvanized steel. |
|
|
Column：2435mm*(2.0-3.0mm)*4pcs,hot rolled galvanized steel. |
|
|
Corner Fitting：4.5-5.0mm*4pcs |
|
|
Diagonal brace：300mm*4pcs |
|
|
Square steel purlin：2890*80*80*(1.6-1.7mm)*4pcs，2890*80*40*(1.6-1.7mm)*5pcs |
|
|
Roof |
Long beam：5800mm*(2.0-3.0mm)*2pcs,hot rolled galvanized steel. |
|
Short beam：2800mm*(2.0-3.0mm)*2pcs,hot rolled galvanized steel. |
|
|
Corner Fitting：4.5-5.0mm*4pcs,hot rolled galvanized steel. |
|
|
style pressure steel channel： |
|
|
Square steel：2865*35*16*(1.0-1.2mm)*6pcs |
|
|
EPS sandwich panel：2870*950*50mm*6.5pcs, |
|
|
Wall |
Size：50mm EPS sandwich panel or optional materials |
|
Color：white or other optional colors |
|
|
Steel sheet：0.286/0.326/0.376/0.426/0.476mm |
|
|
Corner trim strip： |
|
|
Door |
2035mm*925mm Zinc iron alloy door with lock or optional door |
|
Window |
1100mm*950mm*2pcs Plastic-steel window or optional window |
|
Floor |
MGO floor or cement fiber floor |
|
Total weight |
About 1000kg |
|
Other material |
Hardware,Decorative strips,silicon sealant etc. |
The above is the configuration list of a standard container house. If you want to change some materials, please tell us. We will design and produce it as your needs.
3.Product Feature And Application of China Site Office Cabin Prefab Container Home Flat Pack Container House
The features of china site office cabin prefab container home flat pack container house :
1. Natural drainage, no internal drainage facilities.
2. More than 80% prefabrication process, convenient construction.
3. Cost saving, time saving, labor saving.
4. The house can be moved as a whole using a crane or forklift for easy transportation.
5. Fireproof, waterproof, corrosion resistance, sound insulation, heat preservation.
6. Durable,environmental protection.
7. Wide application range and flexible use.
The application of China site office cabin prefab container home flat pack container house:
1. Construction site office.
2. Construction site dormitory.
3. Mining area temporary housing.
4. Government project construction engineering office, etc.
5. Container house camp.
6. Container warehouse.
7. Container labor camps, shelters.
4.Product Details of China Site Office Cabin Prefab Container Home Flat Pack Container House

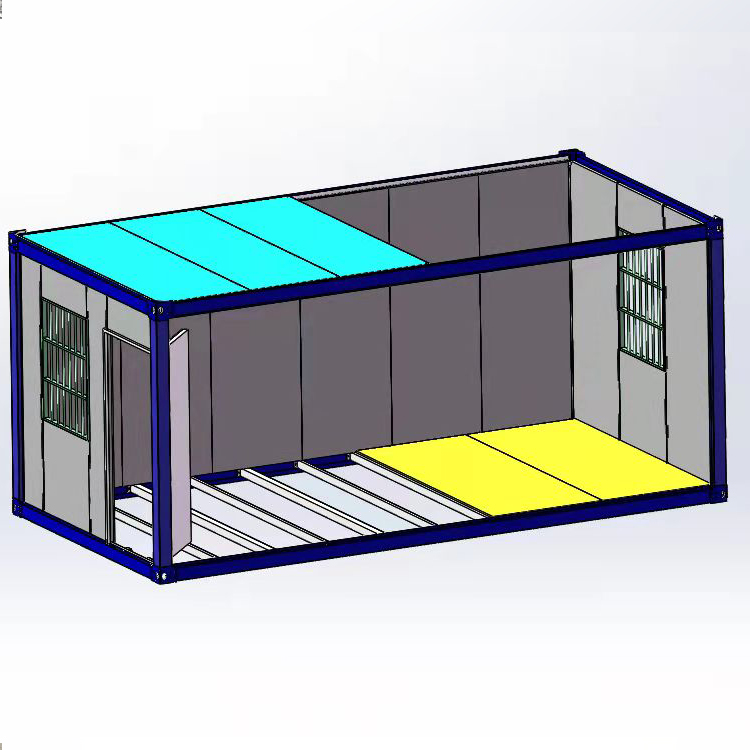

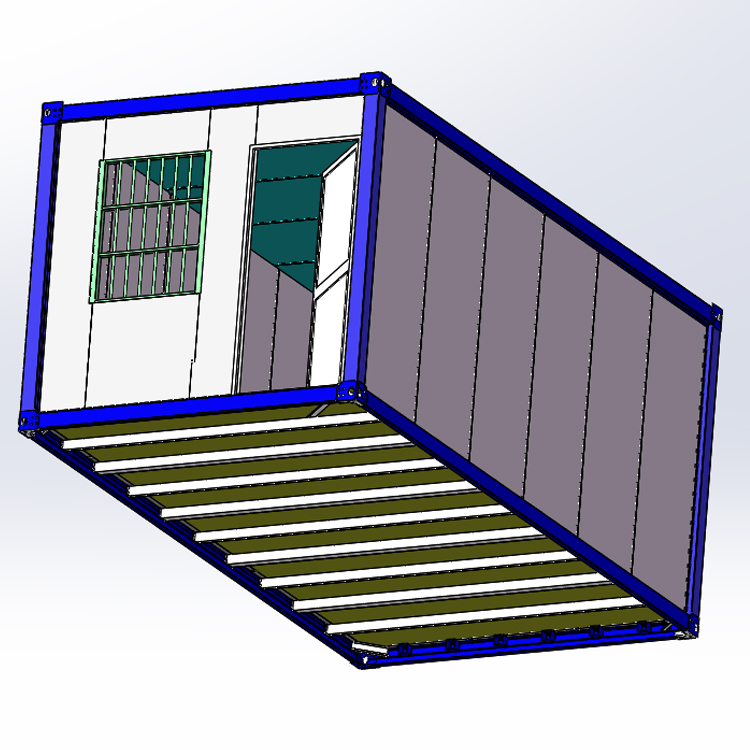

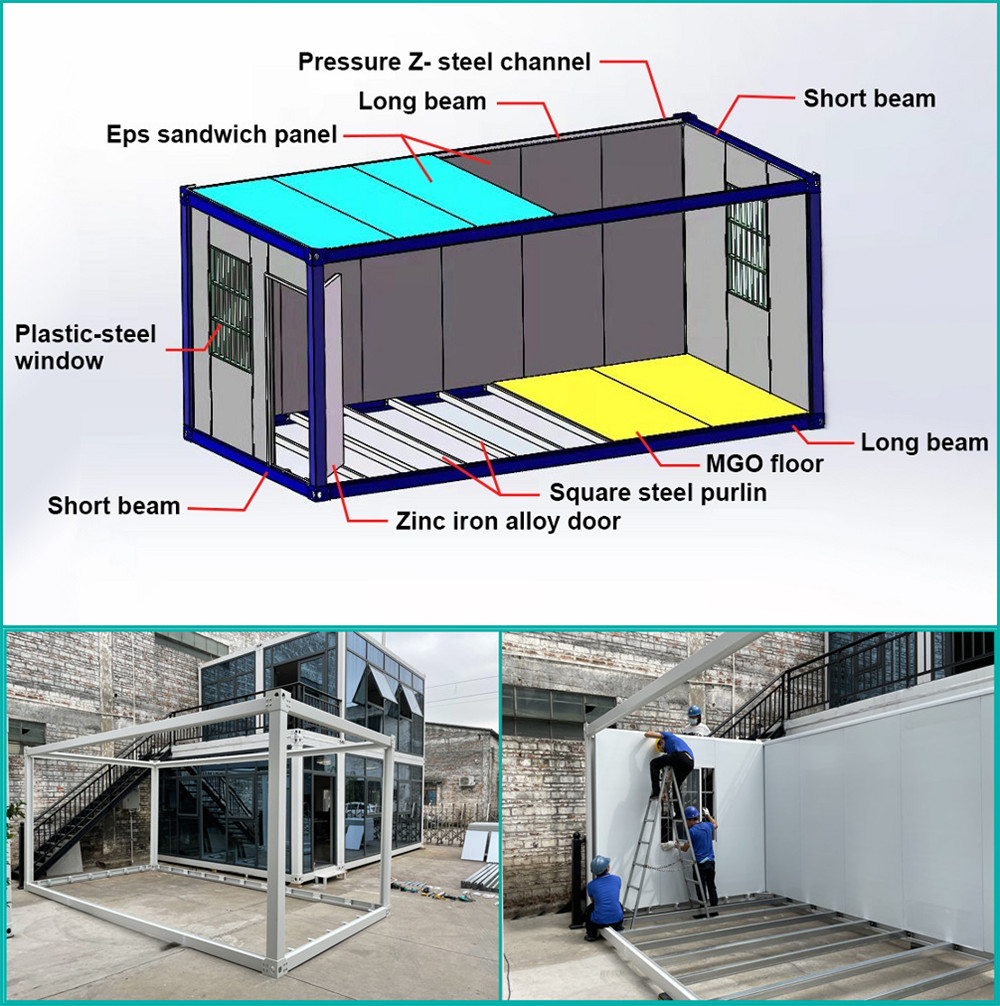

Below is the structure drawing of our standard container house, you can make some changes according to your needs, we will try our best to meet your design scheme.
5. Product Qualification of China Site Office Cabin Prefab Container Home Flat Pack Container House
High quality products from:
1. Made of high quality galvanized steel with high strength.
2. The main frame is made of high quality coating material, which is corrosion-resistant, not easy to rust and more beautiful after high temperature baking.
3. The thickness of the main frame material can be adjusted according to the actual need, the thickness of the beam and column can be 2.0-2.5 mm, the bottom square steel can be 1.5-1.7 mm, good firmness, safe and reliable.
4. Container houses have passed CE certification. Akay company in accordance with ISO system standards management and manufacturing.
6. Deliver,Shipping And Serving of China Site Office Cabin Prefab Container Home Flat Pack Container House
Deliver Time: 3-15 days.
Shipping Type: Sea container transport or other options.
Custom Service:
1. Container size can be customized.
2. Container material specifications can be customized.
3. Spray color is optional.
4. Wallboard color optional.
7. FAQ
Q1:Are you a factory or trade company?
A1:We are specialized in manufacturing flat pack container house.Our factory is located in Foshan city,Guangdong Province,China.
Q2:What is your payment terms?
A2:The payment is T/T, L/C or other options.
Q3:What's your earliest delivery time?
A3: Delivery time for the flat pack container house depends on your order volume, about 5-15 days, small orders can be delivered within 5 days.
Q4:What other types of prefabricated products do you have?
A4:Detachable container house,flat pack container house,prefabricated T homes and prefabricated K homes,portable sandwich panel bathroom and portable security house and so on.
Q5:What do we need to provide before placing an order?
A5:If you have design drawings and project plan drawings, please provide them to us. If you don't have any, please tell us your specific needs and we will help you design.
