1.Products Introduction of China Ready Made Container Homes Flat Pack Container House
China ready made container homes flat pack container house is a detachable design that can be dismantled and reassembled for easy reuse. If the transportation is not convenient in areas where cranes or forklifts cannot be provided, we recommend you to use this flat pack container house, whose convenience is incomparable to other fixed container houses. China ready made container homes flat pack container house can be custom-sized, can be combined and connected into larger Spaces, and combined into different shapes.
2.Products Parameter (Specification) of China Ready Made Container Homes Flat Pack Container House
|
Name |
Flat pack container homes with steel structure roof |
|
Sizes |
Outside size:5960mm*3010mm*2810mm（customized） |
|
Inside size:5735mm*2800mm*2500mm |
|
|
Base |
Long beam:5760mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel |
|
Short beam:2810mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel |
|
|
Column:2470mm*(2.0-3.0mm)*4pcs, hot rolled galvanized steel. |
|
|
Corner Fitting:4.5-5.0mm*4pcs |
|
|
Square steel purlin:2880*80*80*(1.6-1.7mm)*4pcs，2880*80*40*(1.6-1.7mm)*5pcs |
|
|
Roof |
Long beam:5760mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel |
|
Short beam:2810mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel |
|
|
Corner Fitting:4.5-5.0mm*4pcs, hot rolled galvanized steel |
|
|
Pressure steel channel:5730*183*2pcs，2780*183*2pcs |
|
|
Angle steel:5730*30*30*2pcs |
|
|
T-shaped steel for roof:1883*78*(1.0-1.2mm)*6pcs |
|
|
C-style steel:1883*80*35**(1.0-1.2mm)*3pcs |
|
|
Square steel:5735*40*40*(1.0-1.2mm)*1pc，2785*80*40*(1.0-1.2mm)*2pcs |
|
|
Water tank:5840*280*2pcs |
|
|
Roof decoration |
Roofing Sheet:2900mm*980*7pcs，2770mm*831*7pcs |
|
Other material:glass wool |
|
|
Wall |
Size:50mm EPS sandwich panel/Rock wool sandwich panel |
|
Color:white or other optional colors |
|
|
Steel sheet:0.286/0.326/0.376/0.426/0.476mm |
|
|
Door |
2035mm*925mm Zinc iron alloy door with lock or optional door |
|
Window |
1100mm*950mm*2pcs Plastic-steel window or optional window |
|
Floor |
MGO floor or cement fiber floor |
|
Total weight |
About 1300kg |
|
Other material |
Hardware,Water pipe,Wrap angle,Decorative strips,silicon sealant etc. |
This is the standard configuration material for container houses, we can customize according to your specific needs.
3.Product Feature And Application of China Ready Made Container Homes Flat Pack Container House
The features of China ready made container homes flat pack container house:
1. More than 80% prefabrication process, efficient construction.
2. Easy to use, wide range of applications.
3. Saving labor cost and construction cost.
4. It can be moved and transferred as a whole, easy to reuse, energy saving and environmental protection.
5. Fireproof and waterproof, good corrosion resistance, not easy to rust, sound insulation, heat preservation, long service time.
6. Firm structure and good stability.
The application of China ready made container homes flat pack container house:
1. Construction site project department office.
2. Labor and mining temporary dormitory.
3. Prefab container classroom.
4. Prefabricated container office camp.
5. Customized modular container store.
6. Outdoor site office cabin.
7. Modular accommodation units and so on.

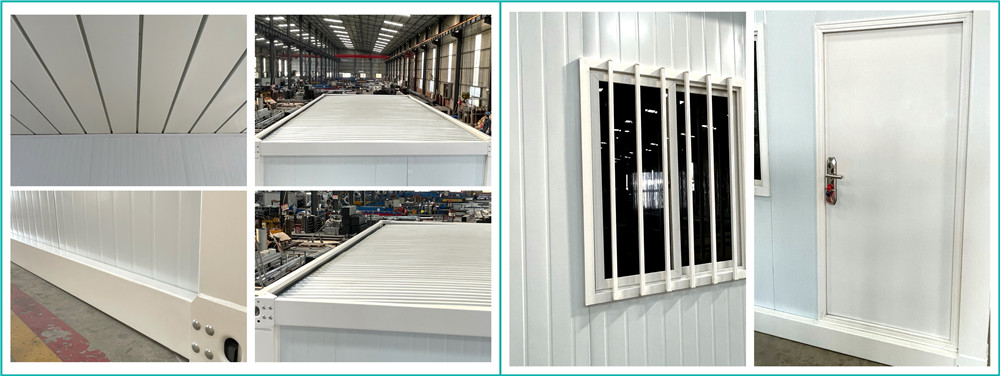

4.Product Details of China Ready Made Container Homes Flat Pack Container House

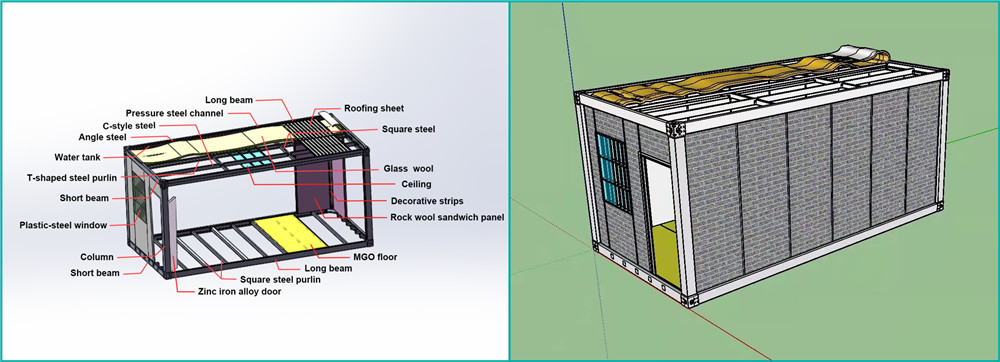

Below is the structure diagram of our standard container houses. Let us know if you have different needs.
5.Product Qualification of China Ready Made Container Homes Flat Pack Container House
High quality products come from:
1. The steel structure is made of high quality galvanized steel, with high quality coating and high temperature baking, the structure is firm, durable, not easy to rust, safe and reliable.
2. The thickness of beam and column material can be selected between 2.0-2.5 mm, and higher demand can also be proposed.
3. All prefabricated housing products have passed CE certification, and the company's production and management are strictly in accordance with ISO system standards.
6. Deliver,Shipping And Serving of China Ready Made Container Homes Flat Pack Container House
Deliver Time: 3-15 days.
Shipping Type: LCL, 40HQ or 20GP Container transport.
Custom Service:
1. The size and material specifications of container houses.
2. Local structure design.
3. Spraying color,such as: white,blue,green,black and so on.
4. The color and color steel thickness of wallboard are optional.
7.FAQ
Q1:Are you a factory or trade company?
A1:We are specialized in manufacturing China ready made container homes flat pack container house.Our factory is located in Foshan,Guangdong,China.
Q2:What is your payment terms?
A2:The payment is T/T, L/C or other options.
Q3: What other types of prefabricated products do you have?
A3: Detachable container house,20ft or 40ft container house,prefabricated T homes and prefabricated K homes,portable sandwich panel bathroom and portable security house and more.
Q4:What's your minimum order quantity(MOQ)?
A4: Our minimum order quantity is 5 sets of detachable flat pack container house. Considering logistics cost, we suggest you to order at least 15 sets, which is the maximum loading capacity of 40HQ freight container.
