1.Products Introduction of China Container Homes Flat Pack Container House Modular Hospital
China container homes flat pack container house modular hospital is a detachable design that can be dismantled and reassembled for easy reuse. If the transportation is not convenient in areas where cranes or forklifts cannot be provided. China container homes flat pack container house modular hospital is widely used, such as business office, residential, temporary dormitories, temporary shops, newspaper stand sentry box,temporary shelters and more.It can be a single room or grouped into a large house, which can be built up to three floors.
2.Products Parameter (Specification) of China Container Homes Flat Pack Container House Modular Hospital
|
Name |
Detachable Flat pack container homes with steel structure roof |
|
Size |
Outside size:5960mm*3010mm*2810mm, |
|
Base |
Long beam:5760mm*(2.0-3.0mm)*2pcs, galvanized steel |
|
Short beam:2810mm*(2.0-3.0mm)*2pcs, galvanized steel |
|
|
Column:2470mm*(2.0-3.0mm)*4pcs, galvanized steel. |
|
|
Square steel purlin:2880*80*80*(1.6-1.7mm)*4pcs，2880*80*40*(1.6-1.7mm)*5pcs |
|
|
Roof |
Long beam:5760mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel |
|
Short beam:2810mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel |
|
|
Corner Fitting:4.5-5.0mm*4pcs, hot rolled galvanized steel |
|
|
Pressure steel channel:5730*183*2pcs，2780*183*2pcs |
|
|
Angle steel:5730*30*30*2pcs, |
|
|
C-style steel:1883*80*35**(1.0-1.2mm)*3pcs, |
|
|
Square steel:5735*40*40*(1.0-1.2mm)*1pc，2785*80*40*(1.0-1.2mm)*2pcs |
|
|
Roof decoration |
Roofing Sheet:2900mm*980*7pcs，2770mm*831*7pcs, |
|
Wall board |
Size:50mm EPS sandwich panel/Rock wool sandwich panel |
|
Steel sheet:0.286/0.326/0.376/0.426/0.476mm, |
|
|
Door/ |
2035mm*925mm Zinc iron alloy door with lock or optional door. |
|
Floor |
MGO floor or cement fiber floor |
This is the standard configuration material for container houses, we can customize according to your specific needs.
3.Product Feature And Application of China Container Homes Flat Pack Container House Modular Hospital
The features of China container homes flat pack container house modular hospital:
1. More than 80% prefabrication process, efficient construction.
2. Easy and quickly to assemble, wide range of applications.
3. Saving labor cost and construction cost.
4. It can be moved and transferred as a whole, easy to reuse, energy saving and environmental protection.
5. Fireproof and waterproof, good corrosion resistance, sound insulation, heat preservation, durable.
6. Using high quality raw materials, form firm structure and good stability.
The application of China container homes flat pack container house modular hospital:
1. Temporary office on construction site.
2. Mining dormitory.
3. Prefabricated container school building and container classroom.
4. Office camp on site.
5. Customize temporary shops.
6. Modular container commercial street.
7. Customize newspaper booths.
8. Modular detachable container accommodation units and so on.

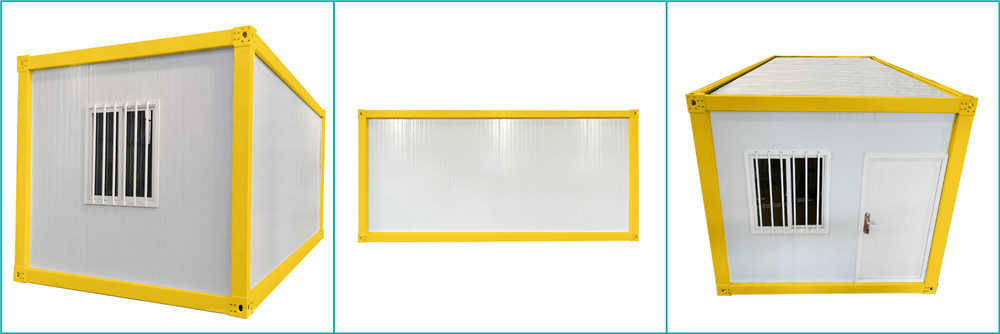

4.Product Details of China Container Homes Flat Pack Container House Modular Hospital
Below is the structure diagram of our standard container houses. Let us know if you have different needs.
5.Product Qualification of China Container Homes Flat Pack Container House Modular Hospital
High quality products come from:

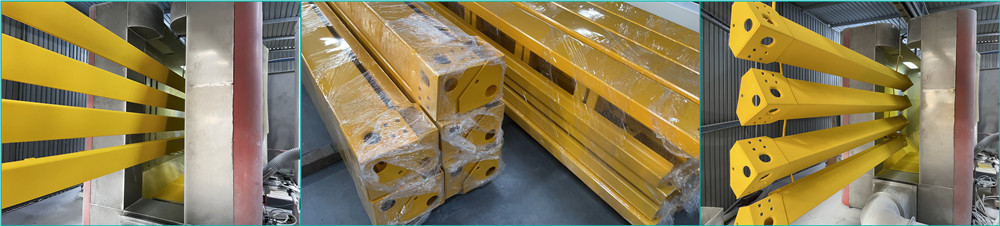

1. The steel structure is made of high quality galvanized steel, with high quality coating and high temperature baking, the structure is firm, durable, not easy to rust, safe and reliable.
2. The thickness of beam and column material can be selected between 2.0-2.5 mm, and higher demand can also be proposed.
3. All prefabricated housing products have passed CE certification, and the company's production and management are strictly in accordance with ISO system standards.
6. Deliver,Shipping And Serving of China Container Homes Flat Pack Container House Modular Hospital
Deliver Time: 3-15 days.
Shipping Type: LCL, 40HQ or 20GP Container transport.
Custom Service:
1. The size and material specifications of container houses.
2. Steel structure design.
3. Spraying color,such as: white,blue,green,black,yellow and more.
4. The color of wallboard are optional.
7.FAQ
Q1:Are you a factory or trade company?
A1:We are specialized in manufacturing China container homes flat pack container house modular hospital.Our factory is located in Foshan,Guangdong,China.
Q2:What advantage do you have?
A2:We are one of the top ten manufacturers in China, you can get a more competitive price by purchasing from the source factory. We have more than 10 years experience of R&D and production, and dozens of patented technologies. Technology and product innovation is our core competitiveness. We have standardized products and non-standard customized services.We have a more flexible mode of operation.
Q3:What's your minimum order quantity(MOQ)?
A3: Our minimum order quantity is 6 sets of detachable flat pack container house. Considering logistics cost, we suggest you to order at least 15 sets, which is the max loading capacity of 40HQ freight container.
Q4:What's your earliest delivery time?
A4: Delivery time for detachable flat pack container house depends on the quantity of your order, the delivery time is about 5-15 days, small orders can be shipped within 5 days.
