1.Products Introduction of China custom container home flat pack container house
China custom container home flat pack container house is a detachable design, can be repeatedly disassembled, recycling. It can improve construction efficiency and save time and labor costs. It can be used as temporary housing. China custom container home flat pack container house can be custom-sized.It can be combined into different shapes and can change the size of the space.
2.Products Parameter (Specification) of China custom container home flat pack container house
|
Name |
Flat pack container homes with steel structure roof |
|
Sizes |
Outside size:5960mm*3010mm*2810mm（customized） |
|
Inside size:5735mm*2800mm*2500mm |
|
|
Base |
Long beam:5760mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel |
|
Short beam:2810mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel |
|
|
Column:2470mm*(2.0-3.0mm)*4pcs, hot rolled galvanized steel. |
|
|
Corner Fitting:4.5-5.0mm*4pcs |
|
|
Square steel purlin:2880*80*80*(1.6-1.7mm)*4pcs，2880*80*40*(1.6-1.7mm)*5pcs |
|
|
Roof |
Long beam:5760mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel |
|
Short beam:2810mm*(2.0-3.0mm)*2pcs, hot rolled galvanized steel |
|
|
Corner Fitting:4.5-5.0mm*4pcs, hot rolled galvanized steel |
|
|
Pressure steel channel:5730*183*2pcs，2780*183*2pcs |
|
|
Angle steel:5730*30*30*2pcs |
|
|
T-shaped steel for roof:1883*78*(1.0-1.2mm)*6pcs |
|
|
C-style steel:1883*80*35**(1.0-1.2mm)*3pcs |
|
|
Square steel:5735*40*40*(1.0-1.2mm)*1pc，2785*80*40*(1.0-1.2mm)*2pcs |
|
|
Water tank:5840*280*2pcs |
|
|
Roof decoration |
Roofing Sheet:2900mm*980*7pcs，2770mm*831*7pcs |
|
Other material:glass wool |
|
|
Wall |
Size:50mm EPS sandwich panel/Rock wool sandwich panel |
|
Color:white or other optional colors |
|
|
Steel sheet:0.286/0.326/0.376/0.426/0.476mm |
|
|
Door |
2035mm*925mm Zinc iron alloy door with lock or optional door |
|
Window |
1100mm*950mm*2pcs Plastic-steel window or optional window |
|
Floor |
MGO floor or cement fiber floor |
|
Total weight |
About 1300kg |
|
Other material |
Hardware,Water pipe,Wrap angle,Decorative strips,silicon sealant etc. |
Above is the configuration list of a standard container house,it can be customized according to your needs.
3.Product Feature And Application of China custom container home flat pack container house
The features of China custom container home flat pack container house:
1. More than 80% prefabrication process, efficient construction.
2. Saving labor cost, saving construction cost and shorten construction period.
3. Container houses can be transported by crane or forklift for easy reuse.
4. Fireproof and waterproof, not easy to rust, sound insulation, heat preservation, long service life, energy saving and environmental protection.
The application of China custom container home flat pack container house:
1. Construction site Project Department.
2. Site office building.
3. Labor dormitory.
4. Mining dormitory.
5. Modular container school.
6. Prefabricated container classroom.
7. Prefabricated container camp.
8. Creative shipping container shops.
9. Container shelter.
10. Construction site camp.
11. On-site office cabin.
12. Modular accommodation units and so on.
4.Product Details of China custom container home flat pack container house

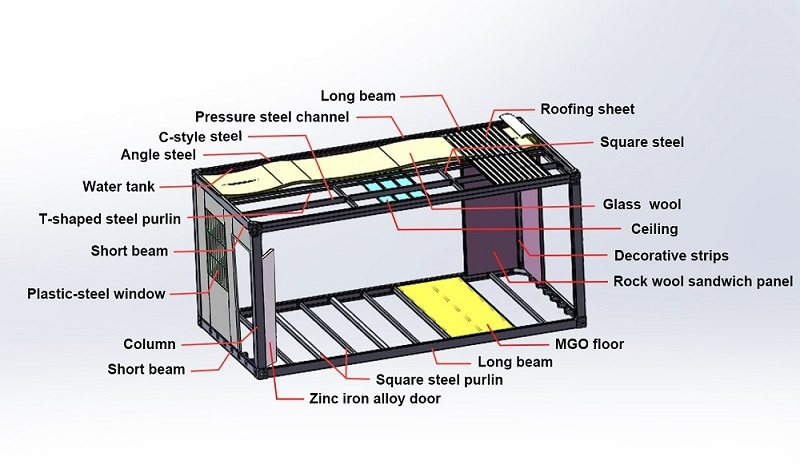

Below is the structure diagram of our standard container houses. If your project has different needs, please let us know and we can help you achieve personalized project solutions.
5.Product Qualification of China custom container home flat pack container house
High quality products come from:
1. The steel structure is made of high quality galvanized steel, with high quality coating and high temperature baking, the structure is firm, durable, not easy to rust, safe and reliable.
2. The thickness of beam and column material can be selected between 2.0-2.5 mm, and higher demand can also be proposed.
3. All prefabricated housing products have passed CE certification, and the company's production and management are strictly in accordance with ISO system standards.
6. Deliver,Shipping And Serving of China custom container home flat pack container house
Deliver Time: 3-15 days.
Shipping Type: LCL, 40HQ or 20GP Container transport.
Custom Service:
1. The size and material specifications of container houses can be customized.
2. Spray color is optional.
3. The color and color steel thickness of wallboard are optional.
7.FAQ
Q1:Are you a factory or trade company?
A1:We are specialized in manufacturing China custom container home flat pack container house.Our factory is located in Foshan city,Guangdong Province,China.
Q2:What is your payment terms?
A2:The payment is T/T, L/C or other options.
Q3:Do your products meet safety standards?
A3:All our products meet the CE safety certification standards. Our company manages and produces according to ISO quality management system standards. Please install our modular prefabricated products strictly according to the instructions.
Q4:Compared to other factories，what advantage do you have?
A4:Our advantages: more than 10 years of experience in developing, manufacturing and selling detachable container houses, flat pack container houses, more than 40 patented technologies, innovative technology and large-scale production to obtain extremely low prices. Fast response R&D team, a large number of professional intelligent production equipment to achieve fast delivery, stock is sufficient, the fastest delivery within 3 days.
